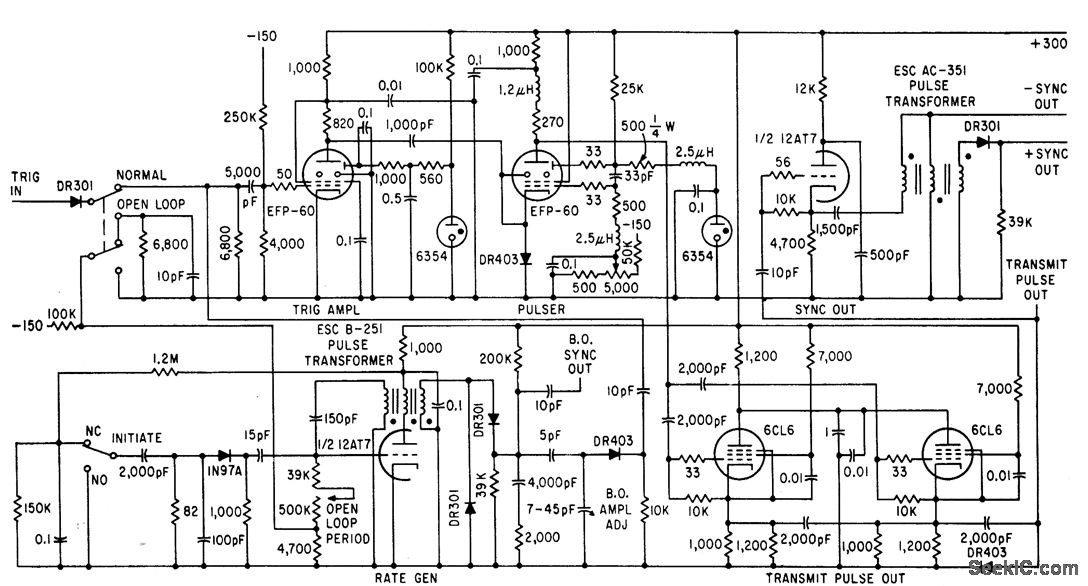

SING_AROUND_TRANSMITTER

Published:2009/7/23 22:02:00 Author:Jessie | From:SeekIC

Used for precision measurement of ultrasonic velocity in liquids and solids. Transmit pulse is applied to ultrasonic transducer on one side of sample. Receiving transducer on other side generates signal to retrigger transmitter,with process repeating in sing-around fashion. Time and number of sing-around cycles are measured to get velocity.-R. L. Forgacs, Precision Ultrasonic Velocity Measurements, Electronics, 33:47, p 98-100.
