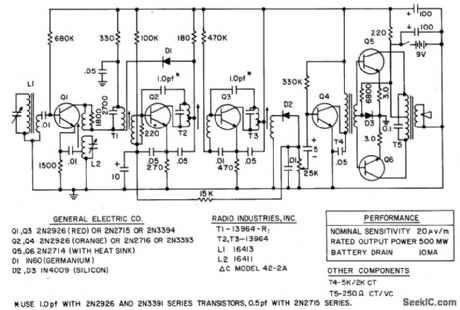

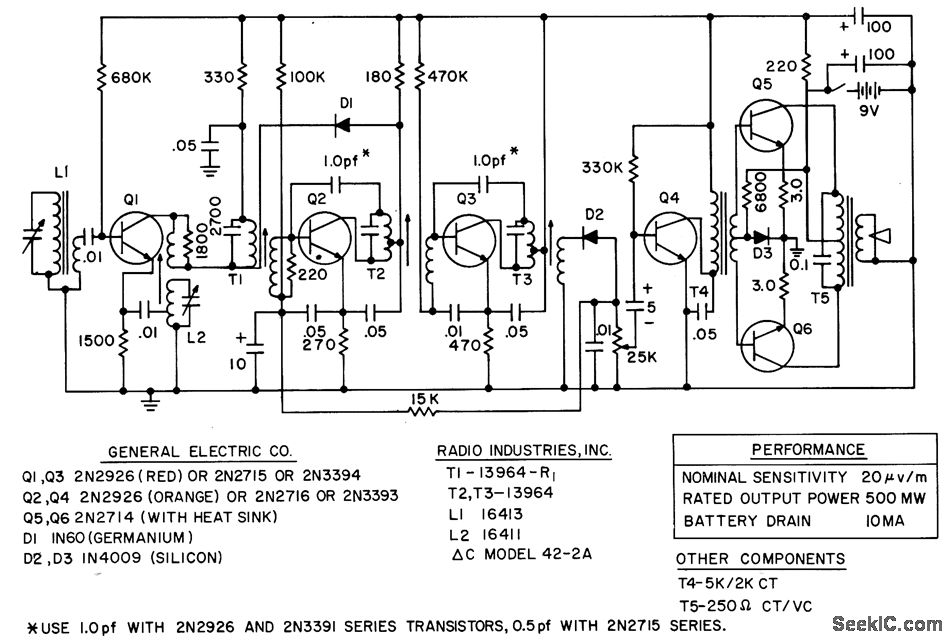

SIX_TRANSISTOR_9_V_BROADCAST

Published:2009/7/20 0:55:00 Author:Jessie | From:SeekIC

Nominal sensitivity is 20 microvolts per meter, rated power output 500 mw, and battery drain 10 ma.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 295.
