SSB_generator

Published:2009/7/23 22:05:00 Author:Jessie | From:SeekIC

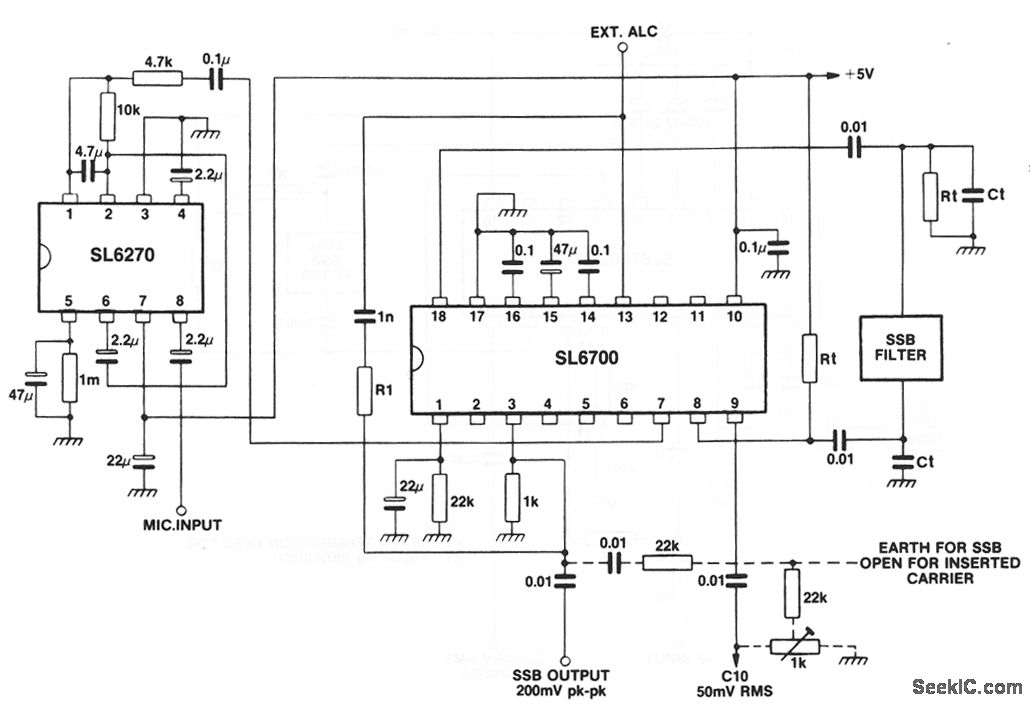

This circuit shows an SL6700 (Fig. 2-13) connected to form a no-adjustment SSB generator. The trim adjustment shown in dashed lines is only used for re-inserting a carrier (not required for basic SSB operation). Notice that the microphone input is applied through an SL6720 (Fig. 1-7).
