Single_pulse_generator_using_an_SUS

Published:2009/7/20 22:37:00 Author:Jessie | From:SeekIC

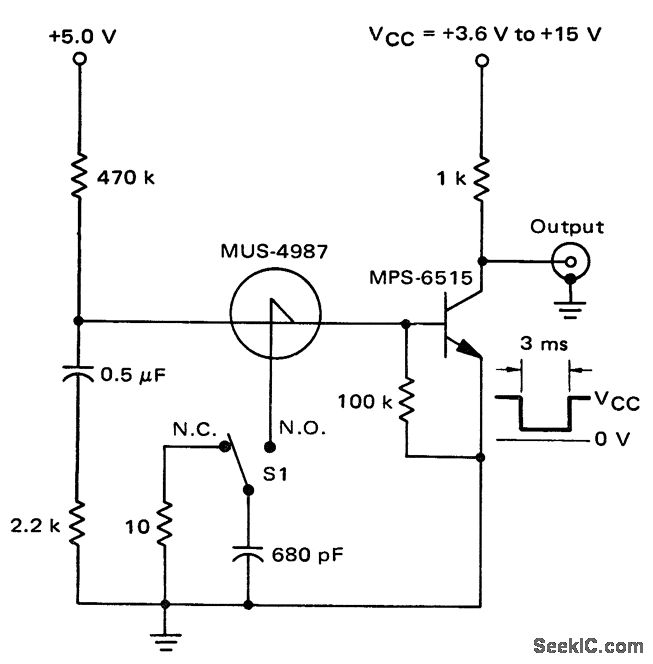

Single pulse generator using an SUS. This circuit is useful in testing digital equipment. The output is a clean debounced pulse of 3 ms duration (courtesy Motorola Semiconductor Products Inc.).
