Smith_AFC_system_for_an_FM_receiver

Published:2009/7/20 2:10:00 Author:Jessie | From:SeekIC

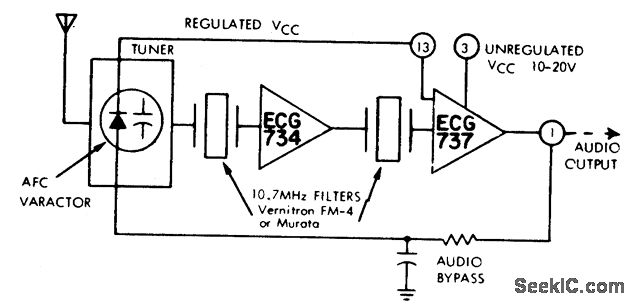

Smith AFC system for an FM receiver. The ECG737 is an FM detector and limiter. It uses quadrature detection and includes a voltage regulator at pin 3. The ECG734 is an FM gain block. This type of circuit is ideal for FM mobile operation (courtesy GTE Sylvania Incorporated).
