Square-wave generator circuit

Published:2011/10/31 2:00:00 Author:May | Keyword: Square-wave generator | From:SeekIC

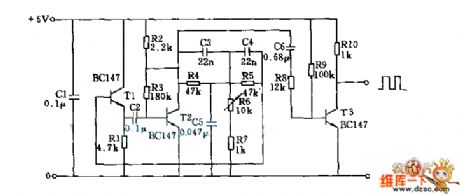

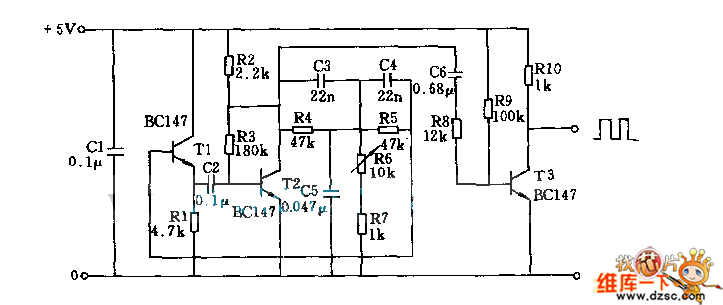

T1 and T2 in the circuitform theinherent oscillator, T3 is output level. Network consists of high-pass filter (C3, C4, R6 + - R7) and low pass filter, it's output is added to the T3 base via C6 and R8, and in the collector of T3, it willget required square wave oscillation signal.
