Staircase_generator_1

Published:2009/7/20 22:28:00 Author:Jessie | From:SeekIC

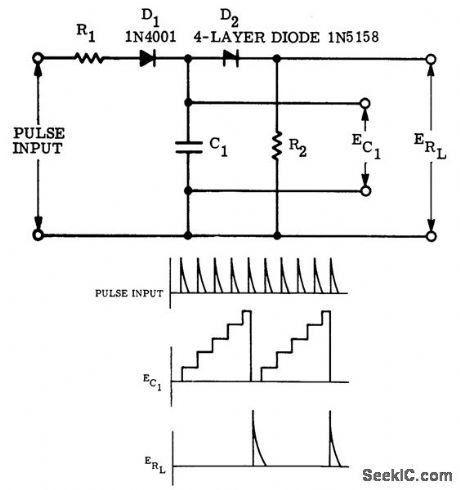

Staircase generator. The number of steps is determined as follows: h = (11RLVBR)/[(Vp - VBR)tp], where n is the number of steps, VBR is the break-down voltage of the PNPN diode, VP is the peak pulse with and tp is the pulse width (courtesy Motorola Semiconductor Products Inc.).
