Superregenerative radio receiver

Published:2012/11/23 0:50:00 Author:muriel | Keyword: Superregenerative, radio receiver | From:SeekIC

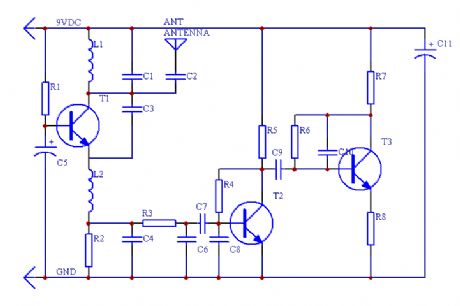

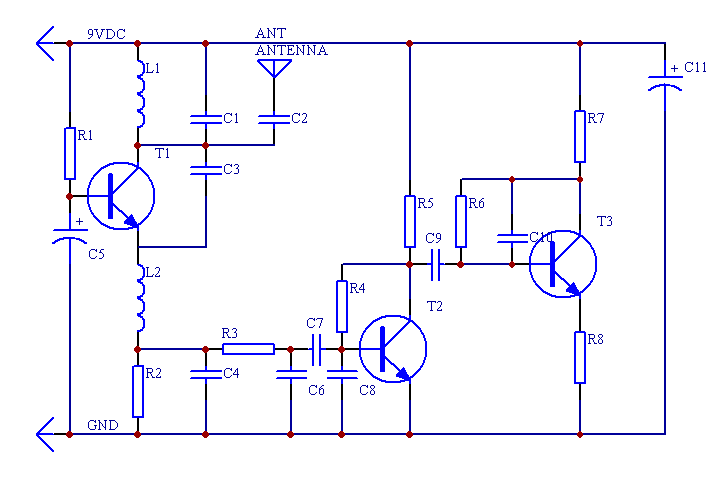

This is a simple RF receiver mainly for low-distance digital radio receiver application. The analog output of this circuit should be connected to a schmitt-trigger signal conditioning circuit with a proper value capacitor (from collector of T3). L1 for 27Mhz is about 10 turns, 6 mm diameter coil body. The circuit is suitable for other frequencies if L1 is changed.
