TEN_FREQUENCY_STANDARD

Published:2009/7/14 21:51:00 Author:Jessie | From:SeekIC

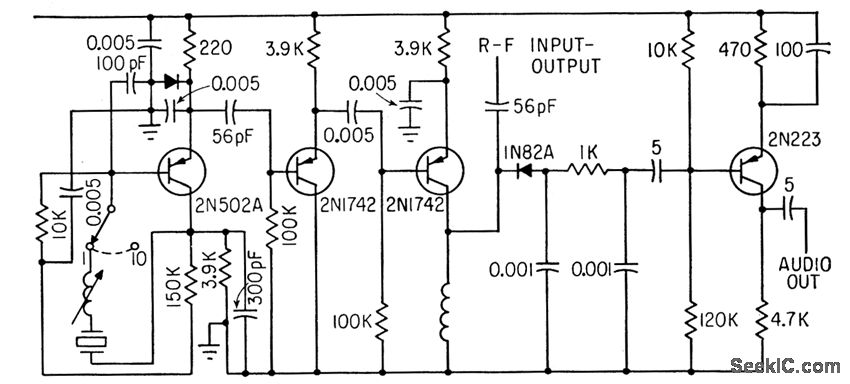

Stable crystal switching oscillator, isolation amplifier, multiplier, mixer, and audio amplifier give choice of ten fundamental frequencies, between 10 and 20 Mc, with harmonic output from 20 to 480 Mc, For zero-boating with unknown input frequency being measured.- Portable Frequency Standard Between 10 and 480 Mc, Electronics, 35:18, p 64.
