TIMING_SIGNAL_GENERATOR

Published:2009/7/24 2:16:00 Author:Jessie | From:SeekIC

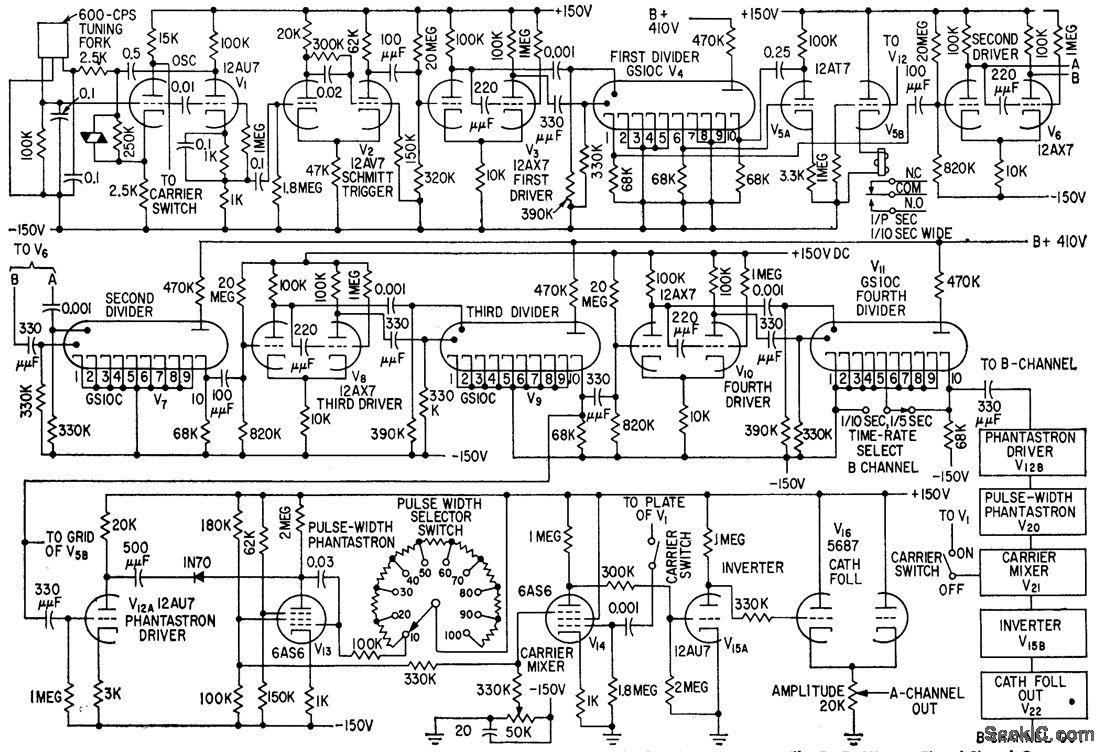

Delivers pulses of controlled duration, amplitude, and carrier content at 1 pps in channel A and either 1 per 5 sec or 1 per 10 sec in channel B. Any decimal frequency multiple of 1, 2, or 5 from 100 to 0.1 cps may be obtained. Timed pulse signals can be controlled both in amplitude and width, and turned on or off at will.-D. E. Minow, Timed-Singal Generator With Flexible Output, Electronics, 32:10, p 52-53.
