TRANSISTOR_MEASUREMENTS_AT_100_MC

Published:2009/7/23 22:06:00 Author:Jessie | From:SeekIC

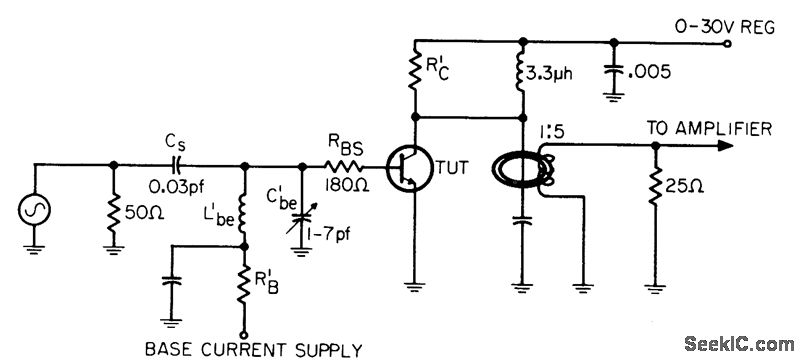

Used to measure h-fe at 100 Mc, where all circuit parameters become more significant and make accurate measurements difficult. Circuit has provisions for separating measured signal from noise, high-gain pre-meter amplifier, and accurate method of metering r-f level. Maximum error is under 5%.-W. H. Hamlin, How to Measure h-fe et 100 mHz, EEE, 13:6, p 70-72.
