TRIANGLE_WAVE_GENERATOR

Published:2009/6/17 2:41:00 Author:May | From:SeekIC

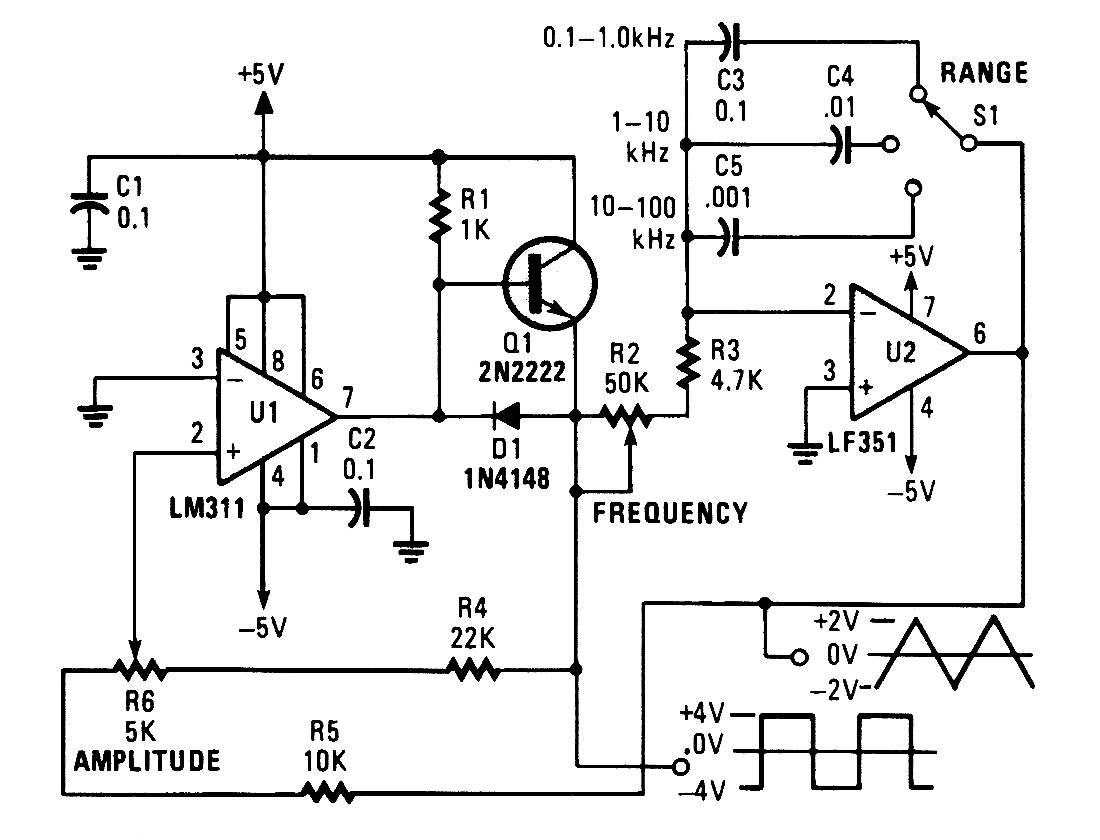

This is a simple triangle-wave generator using two IC devices and a transistor. The triangle wave is used as feedback to the square-wave generator. S1 allows range switching in three ranges from 100 Hz to 100 kHz. Extra positions could be used to extend the range to lower frequencies, using larger values of capacitance.
