TUNNEL_DIODE_TRANSCEIVER

Published:2009/7/23 22:49:00 Author:Jessie | From:SeekIC

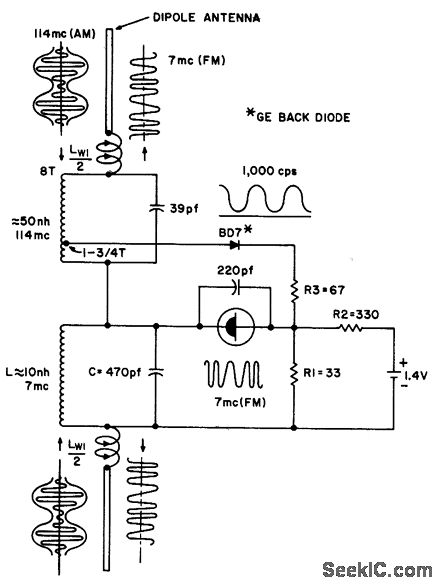

Is tuned for 114.Mc am signal and 7.Mc f-m output signal. 1N3714 tunnel diode acts as 7-Mc r-f oscillator and frequency modulator, while BD-7 back diode is 114-Mc detector.- Transister Manual, Seventh Edition, General Electric Co., 1964, p 361.
