TWO_FUNCTION_SIGNAL_GENERATOR

Published:2009/7/7 6:24:00 Author:May | From:SeekIC

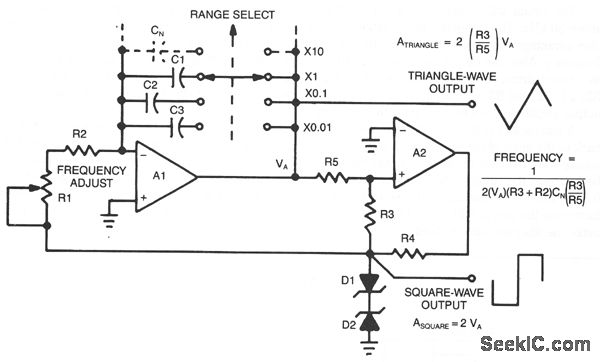

You can continously vary the frequencies of the triangle and square waves produced by this circuit over a full decade. If R5 = R3, the amplitude of the two waveforms will be equal (ASOUARE = ATRIANGLE).
