Ten blocks frequency signal generator(CD4011、CD4017)

Published:2011/5/12 2:05:00 Author:Ecco | Keyword: Ten blocks, frequency, signal generator | From:SeekIC

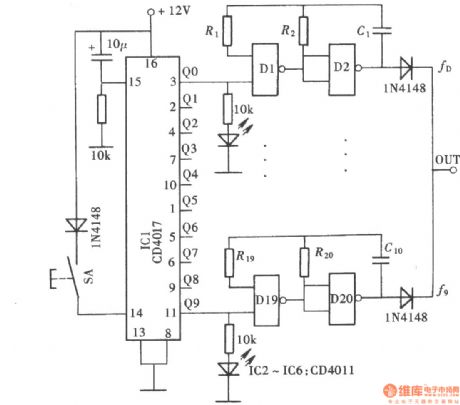

Usually, we use the general-purpose frequency signal generator which is designed as the entire frequency range with a continuous adjustment approach. However, in actual use, we only use a few test frequency. Here the frequency signal generator has been designed ten commonly used fixed-frequency gears,and you can choose the gear according to the need. The frequency signal generator consists of digital gear selector switch and ten fixed frequency signal generator, it is shown as the chart.
