The 400W high power regulated inverter circuit

Published:2011/7/29 4:37:00 Author:Borg | Keyword: high power, regulated inverter circuit | From:SeekIC

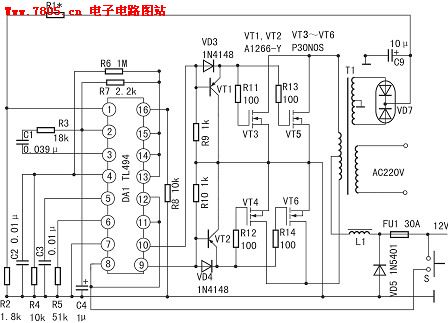

The 400W high power regulated inverter circuit is composed of TL494, whose self-motivation part is TL494,the VT1,VT2,VD3 and VD4 compose the current drive circuit, there are 2 60V/30A MOSFET switch tubes on either drive circuit. If the power needs to be raised ahead, each of the 2 lines can install parallel 3-4 switch tubes and the circuit doesn't change. The usage of TL494 is shown as follows:
