The Wiring Circuit(a) of Volga 3102

Published:2011/5/12 7:50:00 Author:Borg | Keyword: Wiring Circuit, Volga | From:SeekIC

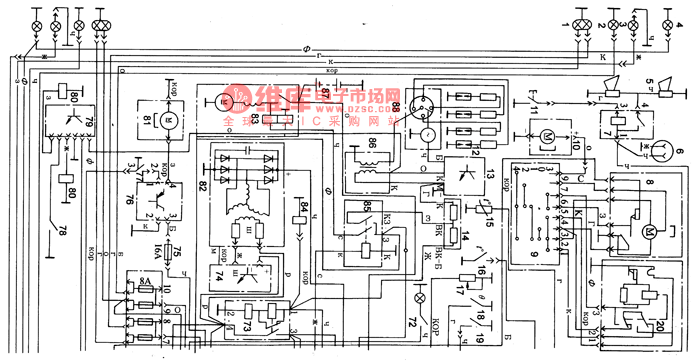

Figure 7 The Wiring Circuit(a) of Volga 3102 1-headlight; 2-width lamp; 3-steering lamp; 4-fog lamp; 5-loudspeaker; 6-working lamp outlet; 7-loudspeaker relay; 8-wiper motor; 9-wiper switch; 10-washer switch; 11-loudspeak buttom; 12-spark piston; 13-electrical igniter; 14-additional resistence of igniting system; 15-water temperature sensor; 16-engine overheat warnign switch; 18-low oil pressure warning switch; 19-brake failure indicator switch; 2-wiper relay;72-engine room lamp
