Published:2011/9/15 1:26:00 Author:Rebekka | Keyword: Three-phase three-wire system , open phase protection | From:SeekIC

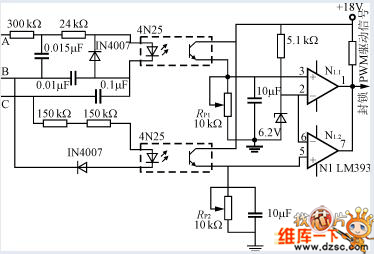

This is an openphase protection circuit for three-phase three-wire power supply. A, B, C are lack of any one phase, the optocoupler output level is lower than the inverting input of the comparator reference voltage. The comparator outputs low blockade PWM to drive signal, turn off the power.As well as the polarity of the comparator input changes, PWM signals can be blocked with a high level.
