Three-phase waveform generator composed of CD4017

Published:2011/6/20 6:13:00 Author:Lucas | Keyword: Three-phase , waveform , generator | From:SeekIC

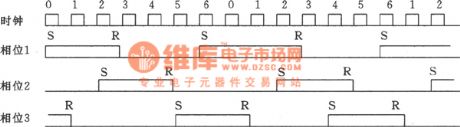

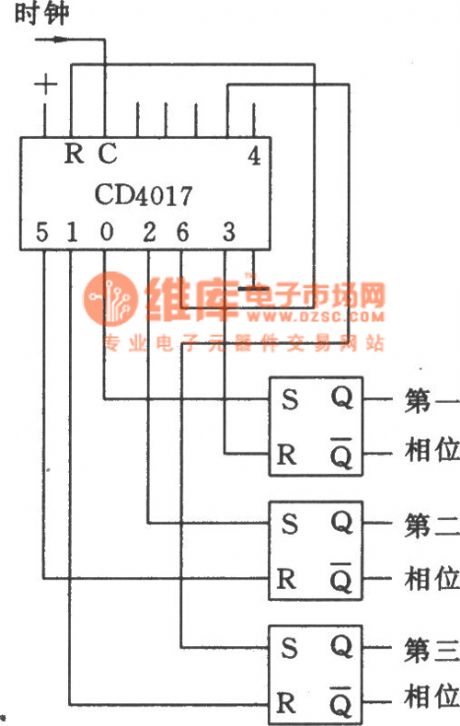

The circuit shown as the chart can use single-phase square wave three-phase to produce square wave, and the three-phase output frequency range is only limited by the logic capacity. Output frequency is 1 / 6 of the input frequency. As bistable flip-flop can change the waveform, the actual input waveform may not be square wave. In the figure, CD4017 is the decimal output CMOS counter with reset function. When the counting resets to 6:00, and then starts counting to six.
