VARIABLE_FREQUENCY_SQUARE_WAVE_GENERATOR

Published:2009/6/18 23:35:00 Author:May | From:SeekIC

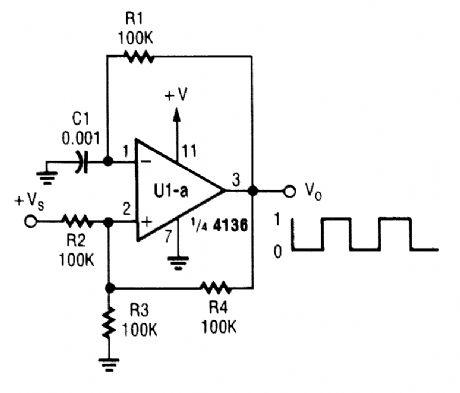

This simple square-wave generator produces a variable frequency output of 2800 Hz to 80 kHz with the values shown. Frequency is adjusted with potentiometer R1.
