VARIABLE_HYSTERESIS_SCHMITT

Published:2009/7/21 9:15:00 Author:Jessie | From:SeekIC

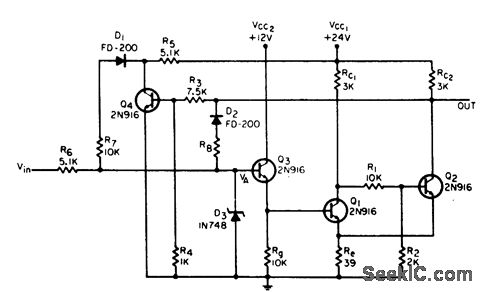

R7 adjusts lower trigger point, and R8 adjusts upper trigger point.-R. S. Hughes, Variable-Hysteresis Schmitt Trigger, EEE, 13:7, p 41.
