VOLTAGE_TUNED_CLAPP_OSCILLATOR

Published:2009/7/22 3:44:00 Author:Jessie | From:SeekIC

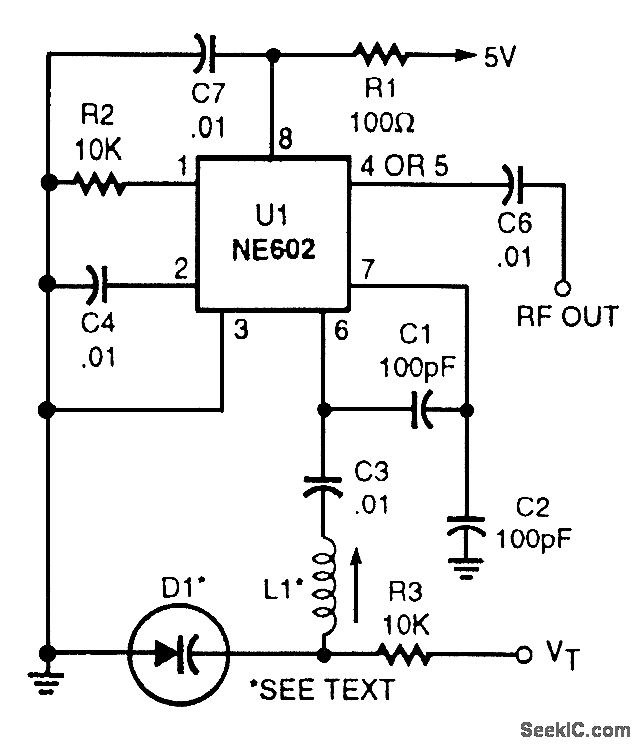

This voltage-tuned Clapp oscillator uses a varactor diode to set its operating frequency. D1 is an NTE614. L1 is about 7/ƒ (MHz) microhenries. With the circuit shown, the frequency range is about 6 to 15 MHz.
