FREQUENCY_DIVIDER

Published:2009/7/1 1:46:00 Author:May | From:SeekIC

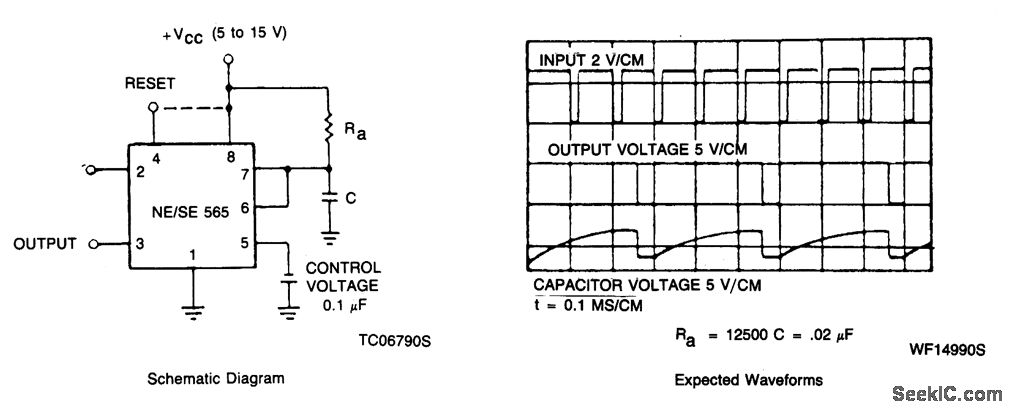

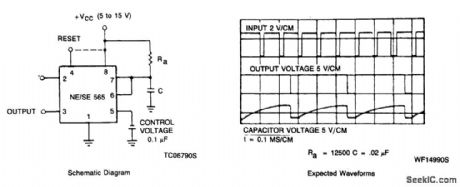

If the input frequency is known, the timer can easily be used as a frequency divider by adjusting the length of the timeing cycle. Figure shows the waveforms of the timer when used as a divide-by-three circuit. This application makes use of the fact that this circuit cannot be retriggered during the timing cycle.
