SIMPLE_TRF_RECEIVER

Published:2009/7/17 3:29:00 Author:Jessie | From:SeekIC

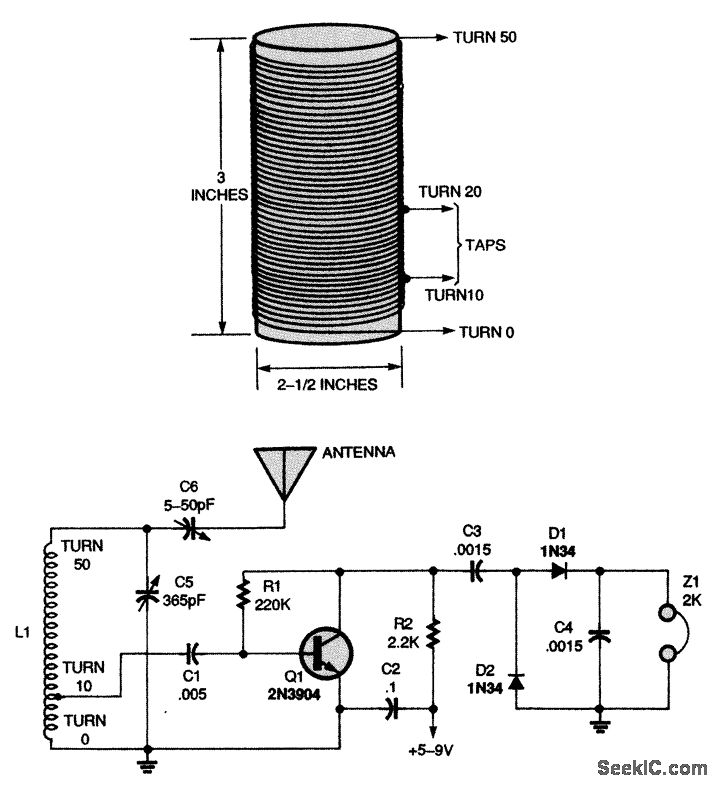

Here is a receiver that contains an RF amplifier. The desired radio-frequency signal can be selected by tuning C5.
