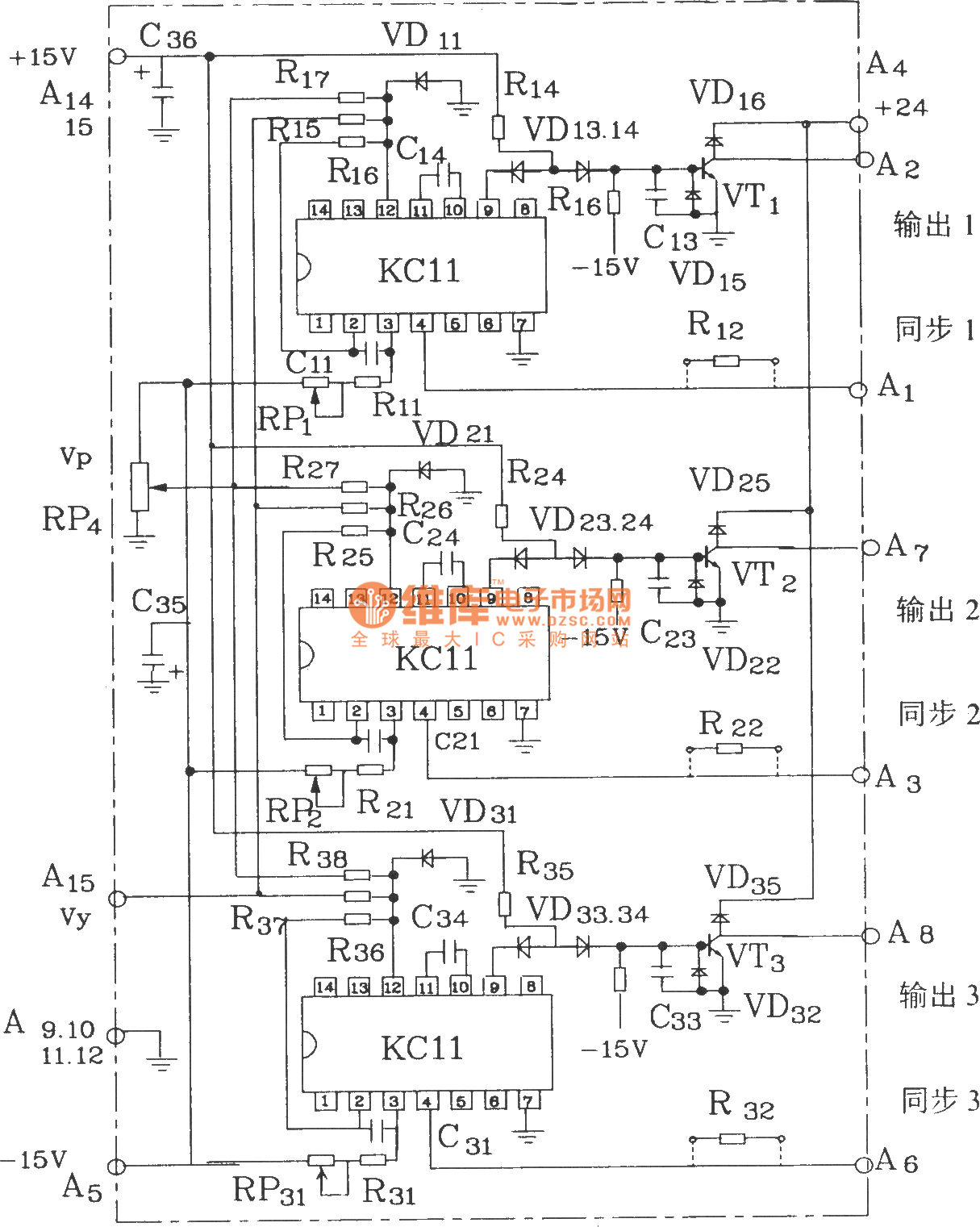

The integrated three pulse trigger components KCZ3 electrical schematic

Published:2012/10/15 22:55:00 Author:Ecco | Keyword: integrated , three pulse, trigger components, electrical schematic | From:SeekIC

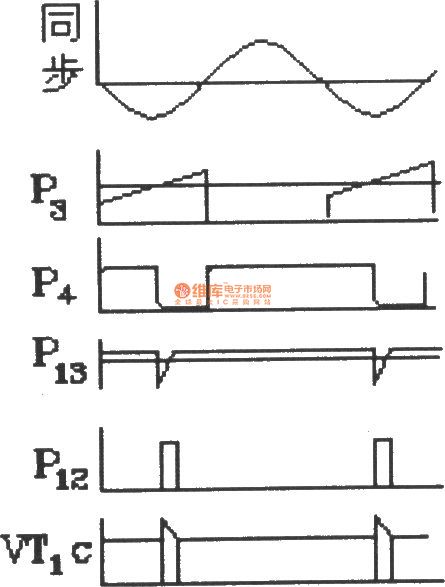

KCZ3 integrated three - pulse triggering component SCR is suitable for three-phase half-bridge inverter trigger. Each phase output pulse can be reliably drive a high-power thyristor, and it can adapt to a variety of phase voltage.The electrical parameters are shown as following:Phase shift control voltage: 0 ~ +8 v ( variable on request).Phase shift range: ≥ l70 .AC synchronization voltage: l0V ( rms) phase voltage. The output stage allowing load current: 300mA.Pulse edge ≤ lμs.Supply Voltage: DC +15 V,-l5V, allow fluctuations of ± 5%.
