The interface circuit between single-chip accelerometer MMA1220D and microcontroller

Published:2012/8/15 21:27:00 Author:Ecco | Keyword: interface circuit , single-chip accelerometer , microcontroller | From:SeekIC

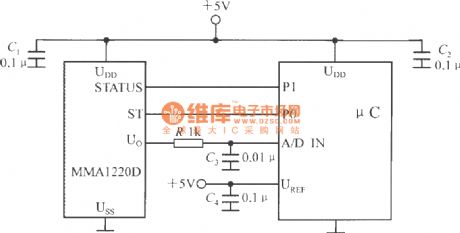

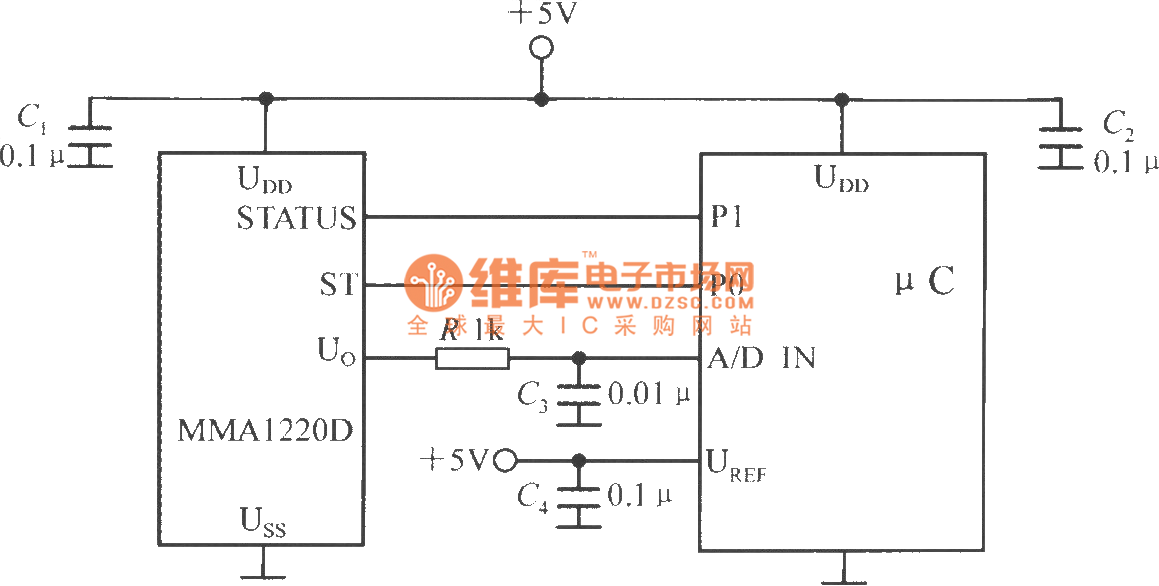

The microcontroller within A / D converter can use PIC MCU within A / D converter produced by the Microchip. MMA1220D's state end and self-test end are connected to the P1, P0 ports of μC, its output voltage is sent to the A / D converter input end. C1, C2 are the power supply decoupling capacitors. A / D converter's reference voltage side ( UREF ) is connected to +5 V power supply.
