VOLTAGE_TO_CURRENT_CONVERTER

Published:2009/7/10 1:55:00 Author:May | From:SeekIC

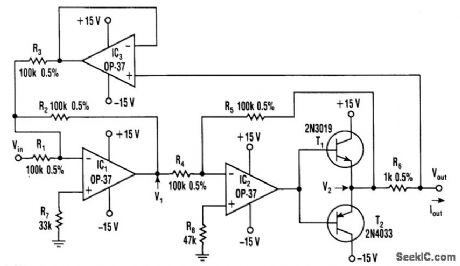

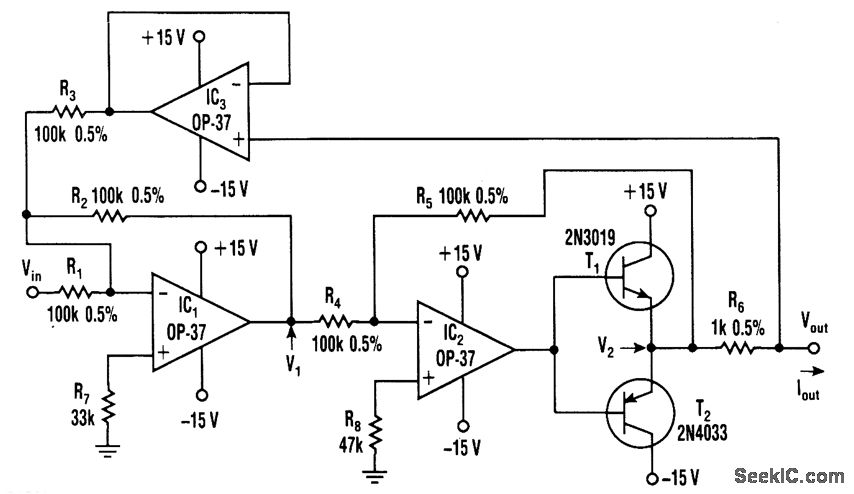

This voltage to current converter uses three op amps to drive a pair of power transistors. The current output is calculated as: IOUT=Vin/R6 Output resistance is over 50 MΩ. IOUT can range from 1 mA to the current ratings of T1 and T2.
