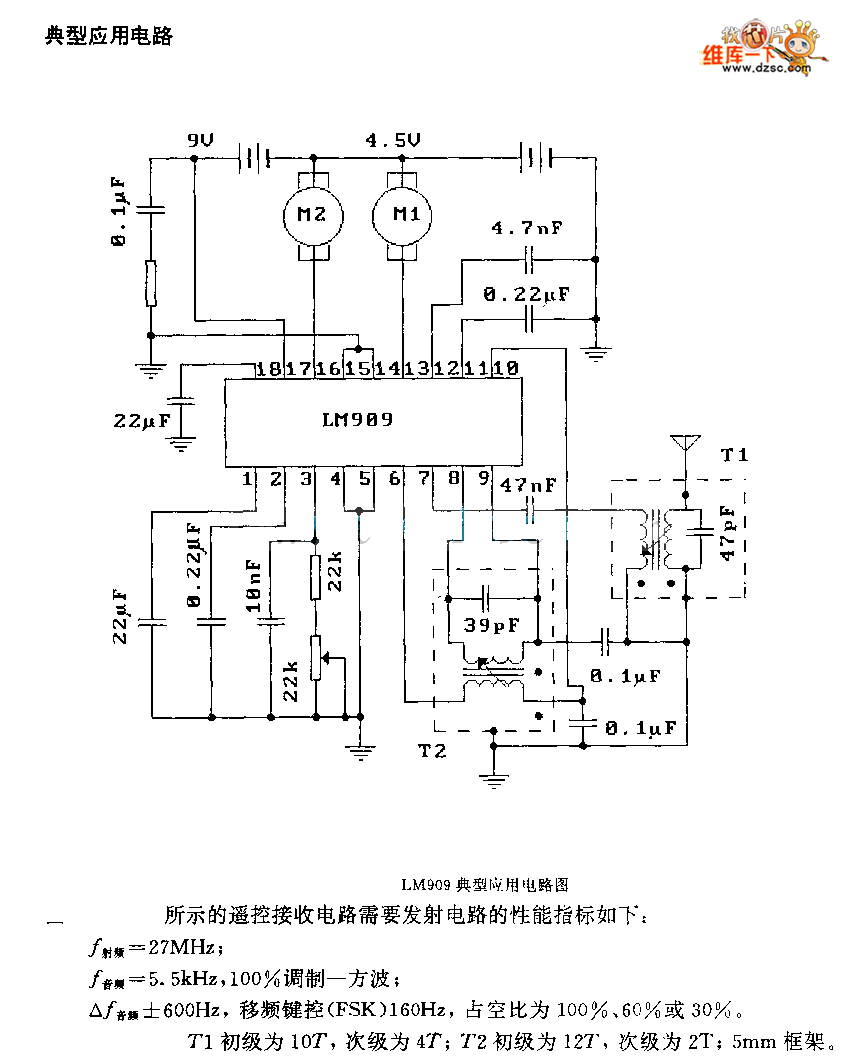

The telecontrol receiving decoding circuit's performance index shown as the chart are as follow: f radio frequency =27MHz, f audio frequency =5.5KHz, 100% modulation - square-wave; f radio frequency=±600Hz, and the frequency shift keying (FSK) is 160Hz, and the dutyfactor is 100%, 60% or 30%, T1's primary is 10T, secondary is 4T; T2's primary is 12T, secondary is 2T; the frame is 5mm.
