Touching dimmer circuit composed of S7232

Published:2011/11/3 21:37:00 Author:May | Keyword: Touching dimmer | From:SeekIC

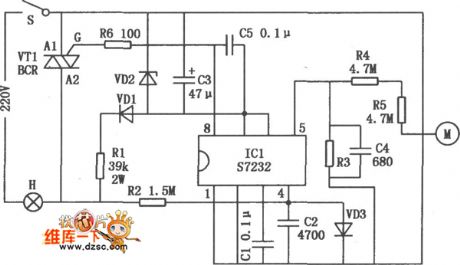

Touching dimmer circuit is shown in the following diagram. It uses finger touch control pieceto realize turning on, off or stepless adjustment for incandescent light. It is used in the dimmer of filament lamp, small AC motor's stepless speed regulation.
