Published:2009/7/15 4:36:00 Author:Jessie | From:SeekIC

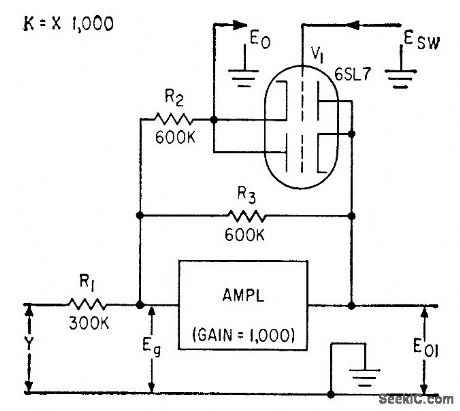

Used in multiplier that acts with one of operational amplifiers of analog computer. Double-triode V1 here provides pulse-amplitude modulation, for use with separate pulse-width modulator to form desired product of two input variables.-A. J. Ferraro, Multiplier for Analog Computers, Electronics, 33:45, p 73-74.
