Simple silicon-controlled dimmer

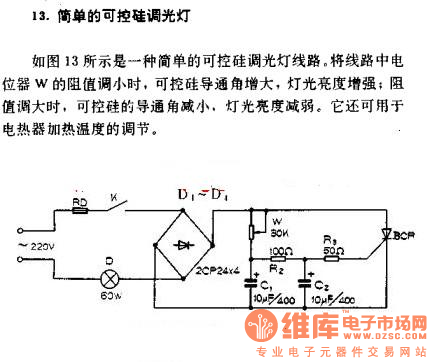

As shown in Figure 13, it is a simple circuit of SCR dimming lights. The w resistance in the potentiometer decreases, SCR conduction angle increases, the light's intensity increases, the resistance enlarges, the SCR conduction angle decreases, the light's intensity decreased. It can also be used as adjusting the heating temperature.
