27MHz NBFM Transmitter

Published:2012/10/11 2:36:00 Author:muriel | Keyword: 27MHz, NBFM Transmitter | From:SeekIC

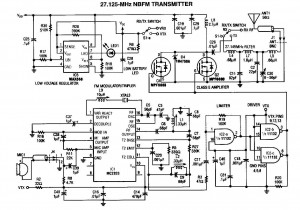

A 27MHz NBFM transmitter circuit schematic with MC2833 and 2 FET transistors MPF6660. Using a Motorola MC2833 one-chip FM transmitter, a few support components and am MPF6660 RF amp, this transmitter delivers up to 3W into a 50 Ω antenna. It is capable of operation over about 29 to 32 MHz with the components shown. 27MHz NBFM transmitter circuit diagram
