Fundamental Pierce oscillator circuit

Published:2012/8/12 22:29:00 Author:Ecco | Keyword: Fundamental Pierce , oscillator | From:SeekIC

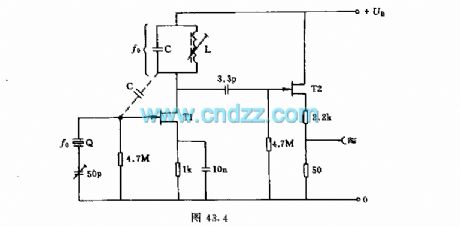

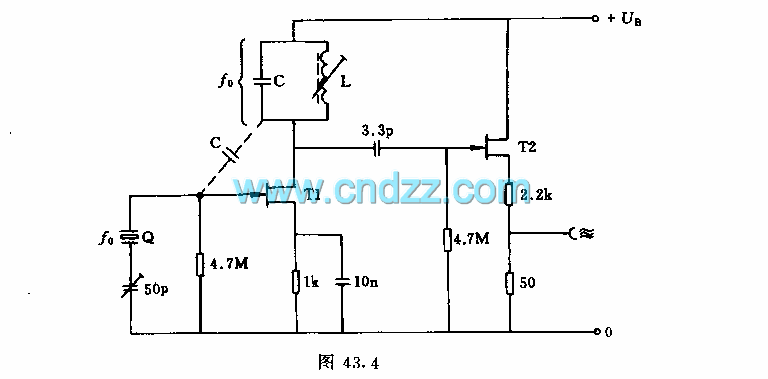

The oscillator uses a fundamental quartz crystal, and the oscillation frequency can be up to 10MHz. Oscillator circuit is tuned to the resonant frequency. Capacitor C requires below 4.7pF, and it is connected to a follower to isolate the quartz crystal circuit.
