1N6290A
-
Suppliers
DataSheet
General Description
1N6290A Maximum Ratings
|
RATING |
SYMBOL |
VALUE |
UNITS |
| Peak power dissipation with a 10/1000s waveform(1) (Fig. 1) |
PPPM |
1500 |
W |
| Peak pulse current wih a 10/1000s waveform(1) |
IPPM |
See Next Table |
A |
| Steady state power dissipation at TL = 75, lead lengths 0.375" (9.5mm)(2) |
PM(AV) |
6.5 |
W |
| Peak forward surge current, 8.3ms single half sine-wave unidirectional only(3) |
IFSM |
200 |
A |
| Maximum instantaneous forward voltage at 100Afor unidirectional only(4) |
VF |
3.5/5.0 |
V |
| Typical thermal resistance junction-to-lead |
RJL |
20 |
/W |
| Typical thermal resistance junction-to-ambient |
RJA |
75 |
/W |
| Operating and Storage Temperature Range |
TJ,TSTG |
-55 to +175 |
(2) Mounted on copper pad area of 1.6 x 1.6" (40 x 40mm) per Fig.
(3) Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum
(4) VF= 3.5V for 1.5KE220(A) & below; V F= 5.0V for 1.5KE250(A) & above
1N6290A Features
`Underwriters Laboratory Recognition under ULstandard ange for safety 497B: Isolated Loop Circuit Protection
` Glass passivated junction
` 1500W peak pulse power capabililty on 10/000s waveform, repetition rate (duty cycle): 0.05%
` Excellent clamping capability
` Low incremental surge resistance
` Very fast response time
` Includes 1N6267 thru 1N6303A
1N6290A
PDF/DataSheet Download
- Datasheet: 1N6290A
- File Size: 757806 KB
- Manufacturer: MICROSEMI [Microsemi Corporation]
- Click here to Download
- ·1N60
- LITTELFUSE [Littelfuse]
- Silicon Avalanche Diodes - 1500 Watt Metal Axial Leaded Transient Voltage Suppressors
- 108387 KB
- ·1N6000
- MICROSEMI [Microsemi Corporation]
- Axial-Leaded 500 mW Zener Diodes
- 230817 KB
- ·1N6000A
- MICROSEMI [Microsemi Corporation]
- Axial-Leaded 500 mW Zener Diodes
- 230817 KB
- ·1N6000B
- FAIRCHILD [Fairchild Semiconductor]
- Zeners
- 149167 KB
- ·1N6001
- MICROSEMI [Microsemi Corporation]
- SILICON 500 mW ZENER DIODES
- 112844 KB
- ·1N6001A
- MICROSEMI [Microsemi Corporation]
- Axial-Leaded 500 mW Zener Diodes
- 230817 KB
- ·1N6001B
- FAIRCHILD [Fairchild Semiconductor]
- Zeners
- 149167 KB
- ·1N6002
- MICROSEMI [Microsemi Corporation]
- SILICON 500 mW ZENER DIODES
- 112844 KB
1N6290A Relative Products
1N6290
1N6289ARL4G
TVS 1500W 56V UNIDIRECT AXIAL
1N6289ARL4

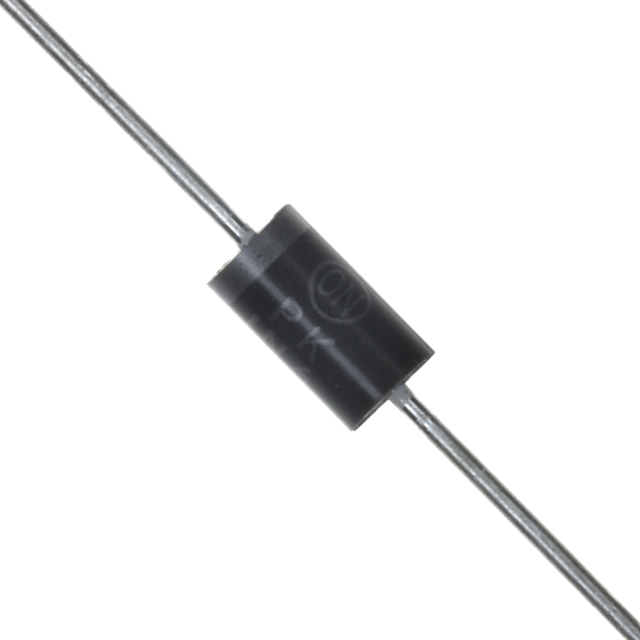

TVS 1500W 56V UNIDIRECT AXIAL
