General Description
27C512A General Description
The Microchip Technology Inc. 27C512A is a CMOS 512K bit electrically Programmable Read Only Memory (EPROM). The device is organized into 64K words by 8 bits (64K bytes). Accessing individual bytes from an address transition or from power-up (chip enable pin going low) is accomplished in less than 90 ns. This very high speed device allows the most sophisticated microprocessors to run at full speed without the need for WAIT states. CMOS design and processing enables this part to be used in systems where reduced power consumption and high reliability are requirements.
A complete family of packages is offered to provide the most flexibility in applications. For surface mount applications, PLCC, VSOP, TSOP or SOIC packaging is available. Tape or reel packaging is also available for PLCC or SOIC packages.
27C512A Maximum Ratings
VCCand input voltages w.r.t. VSS...................................................... -0.6V to +7.25V
VPPvoltage w.r.t. VSS during programming ......................................... -0.6V to +14V
Voltage on A9 w.r.t. VSS.................................................................... -0.6V to +13.5V
Output voltage w.r.t. VSS.............................................................. -0.6V to VCC+1.0V
Storage temperature ...................................................................... -65°C to +150°C
Ambient temp. with power applied ................................................. -65°C to +125°C
VPPvoltage w.r.t. VSS during programming ......................................... -0.6V to +14V
Voltage on A9 w.r.t. VSS.................................................................... -0.6V to +13.5V
Output voltage w.r.t. VSS.............................................................. -0.6V to VCC+1.0V
Storage temperature ...................................................................... -65°C to +150°C
Ambient temp. with power applied ................................................. -65°C to +125°C
27C512A Features
• High speed performance
• CMOS Technology for low power consumption
- 25 mA Active current
- 30 uA Active current
• Factory programming available
• Auto-insertion-compatible plastic packages
• Auto ID aids automated programming
• High speed express programming algorithm
• Organized 64K x 8: JEDEC standard pinouts
- 28-pin Dual-in-line package
- 32-pin PLCC Package
- 28-pin SOIC package
- 28-pin TSOP package
- 28-pin VSOP package
- Tape and reel
• Data Retention > 200 years
• Available for the following temperature ranges
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C
- Automotive: -40°C to +125°C

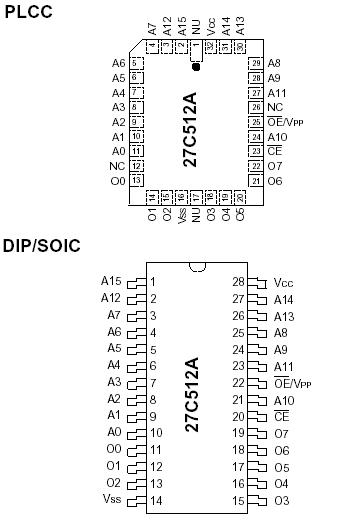

27C512A Connection Diagram
27C512A
