Purchase 2N7053_D75Z, In-stock 2N7053_D75Z From SeekIC.

MFG:Fairchild Semiconductor  Category:Discrete Semiconductor Products

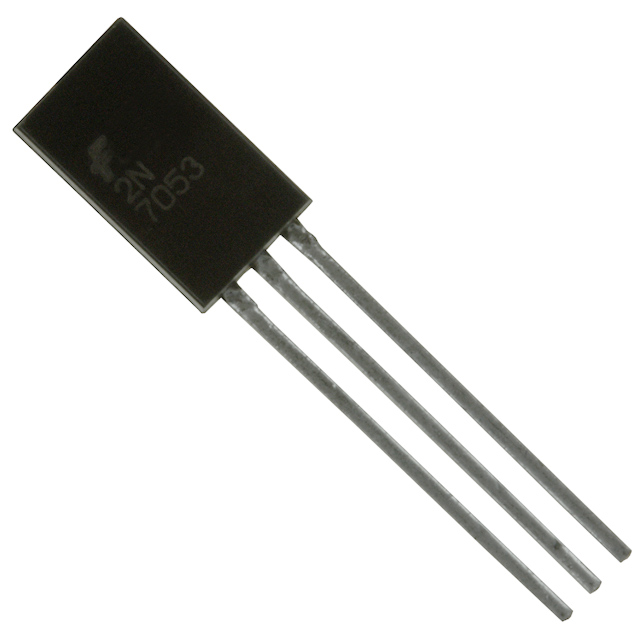

2N7053_D75Z Product Image

2N7 Series Datasheet download

Five Points

Part Number: 2N7053_D75Z

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor





Descriptions: TRANSISTOR DARL NPN 100V TO-226

Price Break

2000

Unit Price

.11340

Extended Price

226.80

(All prices are in USD) Prices for reference only
Urgent Purchase

2N7053_D75Z General Description

TRANSISTOR DARL NPN 100V TO-226

2N7053_D75Z Parameters

Technical/Catalog Information2N7053_D75Z
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN - Darlington
Voltage - Collector Emitter Breakdown (Max)100V
Current - Collector (Ic) (Max)1.5A
Power - Max625mW
DC Current Gain (hFE) (Min) @ Ic, Vce10000 @ 100mA, 5V
Vce Saturation (Max) @ Ib, Ic1.5V @ 100A, 100mA
Frequency - Transition200MHz
Current - Collector Cutoff (Max)200nA
Mounting TypeThrough Hole
Package / CaseTO-226
PackagingTape & Box (TB)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2N7053_D75Z
