Features:

• Low ON-resistance.
• Load S/W Applicaions.
• Avalanche resistance guarantee.

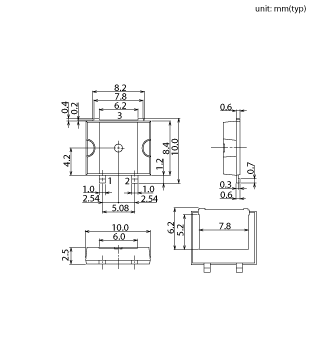

Pinout

Specifications

Parameter	Symbol	Conditions	Ratings	UNIT
Drain to Source Voltage	V_DSS		-60	V
Gate to Source Voltage	V_GSS		±20	V
Drain Current (DC)	I_D		-65	A
Drain Current (Pulse)	I_DP	PW10s, duty cycle1%	-260	A
Total Power Dissipation	P_D	Tc=25	50	W
Channel Temperature	T_ch		150
Storage Temperature	T_stg		55 to +150
Single Avalanche Current *1	I_AV		-65	A
Single Avalanche Energy *2	E_AS		400	mJ

Note : *1 VDD=--30V, L=100H, IAV=--65A
*2 L100H, Single pulse

Absolute maximum ratings
VDSS [V]	60
VGSS [V]	20
ID [A]	65
PD [W]	50 Tc=25°C

Electrical characteristics
RDS(on) typ [] VGS=10V ID [A]=33	0.008
RDS(on) typ [] VGS=4V ID [A]=33	0.0105
VGS(off) min [V]	1.2
VGS(off) max [V]	2.6
\|yfs\| typ [S]	65
Ciss typ [pF]	15500
Qg typ [nC]	290
