54ABT16245

Features: *Bidirectional non-inverting buffers* Separate control logic for each byte* 16-bit version of the 'ABT245* A and B output sink capability of 48 mA, source capability of 24 mA* Guaranteed latchup protection* High impedance glitch free bus loading during entire power up and power down cycl...

product image

54ABT16245 Picture
See larger image
SeekIC No. : 004233012 Detail

54ABT16245: Features: *Bidirectional non-inverting buffers* Separate control logic for each byte* 16-bit version of the 'ABT245* A and B output sink capability of 48 mA, source capability of 24 mA* Guaranteed l...

54ABT16245 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
54ABT16245
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Bidirectional non-inverting buffers
* Separate control logic for each byte
* 16-bit version of the 'ABT245
* A and B output sink capability of 48 mA, source
   capability of 24 mA
* Guaranteed latchup protection
* High impedance glitch free bus loading during entire
   power up and power down cycle
* Non-destructive hot insertion capability
* Standard Microcircuit Drawing (SMD) 5962-9317501




Pinout

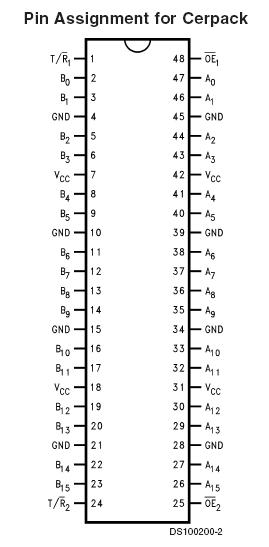

Connection Diagram


Specifications

Storage Temperature ..............................................................................−65 to +150
Ambient Temperature under Bias ............................................................−55 to +125
Junction Temperature under Bias
   Ceramic ................................................................................................−55 to +175
VCC Pin Potential to
   Ground Pin .............................................................................................−0.5V to +7.0V
Input Voltage (Note 2) ..............................................................................−0.5V to +7.0V
Input Current (Note 2) .......................................................................−30 mA to +5.0 mA
Voltage Applied to Any Output
   in the Disabled or
   Power-off State .......................................................................................−0.5V to 5.5V
   in the HIGH State .....................................................................................−0.5V to VCC
Current Applied to Output
   in LOW State (Max) ................................................................twice the rated IOL (mA)
DC Latchup Source Current ................................................................................−500 mA
Over Voltage Latchup (I/O) ........................................................................................10V


Description

The 54ABT16245 contains sixteen non-inverting bidirectional buffers with TRI-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each byte has separate control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the 54ABT16245. The OE inputs disable both the A and B ports by placing them in a high impedance state.
