* Separate control logic for each byte
* 16-bit version of the ABT374
* Edge-triggered D-type inputs
* Buffered Positive edge-triggered clock
* High impedance glitch free bus loading during entire
power up and power down cycle
* Non-destructive hot insertion capability
* Guaranteed latch-up protection
* Standard Microcircuit Drawing (SMD) 5962-9320101
Storage Temperature ............................................................................................−65 to +150
Ambient Temperature under Bias ..........................................................................−55 to +125
Junction Temperature under Bias.
Ceramic ..............................................................................................................−55 to +175
VCC Pin Potential to
Ground Pin ...........................................................................................................−0.5V to +7.0V
Input Voltage (Note 2) ............................................................................................−0.5V to +7.0V
Input Current (Note 2) ......................................................................................−30 mA to +5.0 mA
Voltage Applied to Any Output
in the Disabled or
Power-Off State ......................................................................................................−0.5V to 5.5V
in the HIGH State .....................................................................................................−0.5V to VCC
Current Applied to Output
in LOW State (Max) ................................................................................twice the rated IOL (mA)
DC Latchup Source Current:
OE Pin ............................................................................................................................−350 mA
(Across Comm Operating Range)
Other Pins ......................................................................................................................−500 mA
Over Voltage Latchup (I/O) .......................................................................................................10V

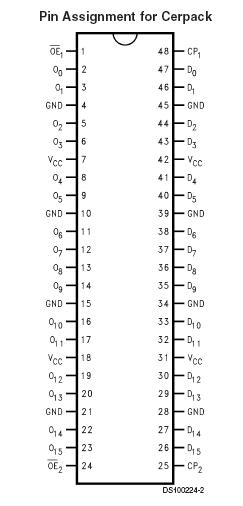

The 54ABT16374 contains sixteen non-inverting D flip-flops with TRI-STATE outputs and is intended for bus oriented applications. The 54ABT16374 is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation.
