Features:

* Separate control logic for each byte
* 16-bit version of the ABT373
* High impedance glitch free bus loading during entire
   power up and power down cycle
* Non-destructive hot insertion capability
* Guaranteed latch-up protection
* Standard Microcircuit Drawing (SMD) 5962-9320001




Pinout

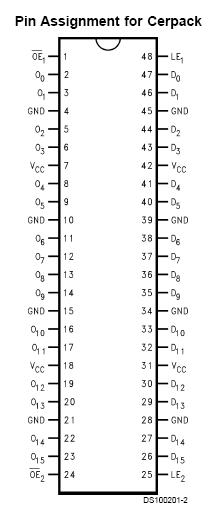

Connection Diagram


Specifications

Storage Temperature ...............................................................................−65 to +150
Ambient Temperature under Bias .............................................................−55 to +125
Junction Temperature under Bias
   Ceramic .................................................................................................−55 to +175
VCC Pin Potential to
   Ground Pin ..............................................................................................−0.5V to +7.0V
Input Voltage (Note 2) ...............................................................................−0.5V to +7.0V
Input Current (Note 2) ........................................................................−30 mA to +5.0 mA
Voltage Applied to Any Output
   in the Disabled or
   Power-Off State ......................................................................................−0.5V to +5.5V
   in the HIGH State ......................................................................................−0.5V to VCC
Current Applied to Output
   in LOW State (Max) ..................................................................twice the rated IOL (mA)
DC Latchup Source Current: OE Pin .....................................................................−350 mA
   (Across Comm Operating Range) Other Pins ....................................................−500 mA
Over Voltage Latchup (I/O) .........................................................................................10V


Description

The 54ABT16373 contains sixteen non-inverting latches with TRI-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops 54ABT16373 appear transparent to the data when the Latch Enable (LE) is HIGH. When LE is low, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the outputs are in high Z state.
