74ABT2952CSC

Number of Channels per Chip : 8
Output Type : 3-State
Package / Case : SOIC-24
Packaging : Tube
Supply Voltage - Max : 5.5 V
Maximum Operating Temperature : + 85 C
Supply Voltage - Min : 4.5 V
Input Level : TTL
Output Level : TTL
High Level Output Current : - 32 mA
Low Level Output Current : 64 mA
Logic Type : BiCMOS
Propagation Delay Time : 5.3 ns
Logic Family : 74ABT


Features:

Separate clock, clock enable and 3-STATE output enable provided for each register
A and B output sink capability of 64 mA source capability of 32 mA
Guaranteed output skew
Guaranteed multiple output switching specifications
Output switching specified for both 50 pF and 250 pF loads
Guaranteed simultaneous switching noise level and dynamic threshold performance
Guaranteed latchup protection
High impedance glitch free bus loading during entire power up and power down cycle
Nondestructive hot insertion capability

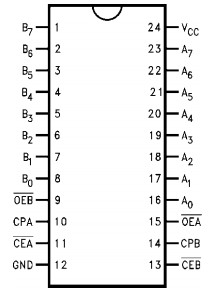

Pinout




Specifications

Storage Temperature....................... −65°C to +150°C
Ambient Temperature under Bias..... −55°C to +125°C
Junction Temperature under Bias..... −55°C to +150°C
V_CC Pin Potential to Ground Pin ...........−0.5V to +7.0V
Input Voltage (Note 2)......................... −0.5V to +7.0V
Input Current (Note 2) ..................−30 mA to +5.0 mA
Voltage Applied to Any Output
    in the Disable or
    Power-Off State............................... −0.5V to +5.5V
    in the HIGH State................................ −0.5V to V_CC
Current Applied to Output
    in LOW State (Max)........... twice the rated I_OL (mA)
DC Latchup Source Current ..........................−500 mA
Over Voltage Latchup (I/O) ...................................10V


Description

The 74ABT2952CSC is an octal registered transceiver. Two 8-bit back to back registers store data flowing in both directions between two bidirectional buses. Separate clock, clock enable and 3-STATE output enable signals are provided for each register. The output pins are guaranteed to source 32 mA and to sink 64 mA.
