Part Number: 74V2G05









Description: The 74V2G05 is an advanced high-speed CMOS TRIPLE INVERTER (OPEN DRAIN) fabricated with sub-micron sil...


Urgent Purchase

74V2G05 General Description


The 74V2G05 is an advanced high-speed CMOS TRIPLE INVERTER (OPEN DRAIN) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology.

The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output.

Power down protection is provided on input and 0 to 7V can be accepted on input with no regard to the supply voltage. This device can be used to interface 5V to 3V.

74V2G05 Maximum Ratings

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7.0
V
VI
 DC Input Voltage
-0.5 to +7.0
V
VO
 DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
-20
mA
IOK
 DC Output Diode Current
±20
mA
IO
 DC Output Current
±25
mA
ICC or IGND
 DC VCC or Ground Current
±50
mA
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
260
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied

74V2G05 Features

` HIGH SPEED: tPD = 3.7ns (TYP.) at VCC = 5V
` LOW POWER DISSIPATION: ICC = 1A(MAX.) at TA = 25
` HIGH NOISE IMMUNITY: VNIH = VNIL = 28% VCC (MIN.)
` POWER DOWN PROTECTION ON INPUT
` OPERATING VOLTAGE RANGE: VCC(OPR) = 2V to 5.5V
` IMPROVED LATCH-UP IMMUNITY

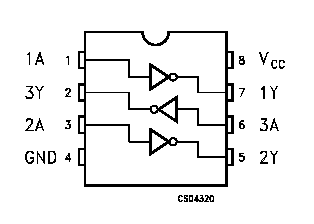

74V2G05 Connection Diagram

74V2G05 Connection Diagram
