Features: • Single chip transmit and receive interface for E3, DS3 and STS-1 applications. • Interface to 75 ohm coaxial cable over 1100 feet at speeds up to 51.84 Mbps. •Compliant with ANSI T1.102-1993, Telcordia GR-499-CORE and GR-253-CORE, ITU-T G.703 and G.823 for jitter tole...
78P7200L: Features: • Single chip transmit and receive interface for E3, DS3 and STS-1 applications. • Interface to 75 ohm coaxial cable over 1100 feet at speeds up to 51.84 Mbps. •Compliant...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
PARAMETER | RATING |
Positive supply, VCC | 6V |
Storage temperature | -65 to 150 |
Ambient operating temperature | -40 to +85 °C |
Output Pin Voltage (LOUT+, LOUT-) Input Pin Voltage (LIN+, LIN-) |
VCC -2 to VCC + 2V |
Input pin voltage, all other pins | VCC+0.3 to GND-03.V |

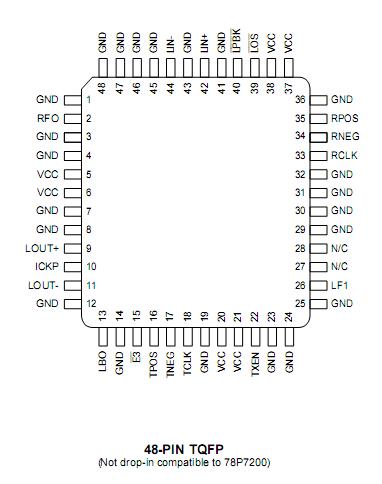

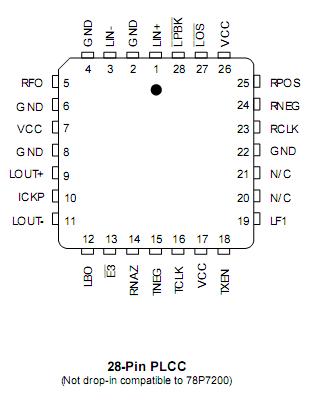

The 78P7200L is a line interface transceiver IC for E3, DS3, STS-1, North America T3 and ATM applications. It includes clock recovery and transmitter pulse shaping functions for applications using 75-ohm coaxial cable at distances up to 1100 feet. These applications include DSLAMs, T3/E3 digital multiplexers, SONET Add/Drop multiplexers, PDH equipment, DS3 to Fiber optic and microwave modems and ATM WAN access for routers and switches.
The receiver of the 78P7200L recovers clock and positive data and negative data from an AMI signal. It can compensate for over 12dB of cable and 6dB of flat loss. The transmitter generates a signal that meets the standard pulse shape requirements.
The 78P7200L is pin and functionally compatible to the 78P7200. It adds loop-back and clock polarity selection.
The 78P7200L is manufactured in an advanced BICMOS process and operates at both 5V and 3.3 V power supply voltages. It consumes less than 95 mA of supply current.
