General Description
82C89 General Description
The Intersil 82C89 Bus Arbiter is manufactured using a selfaligned silicon gate CMOS process (Scaled SAJI IV). This circuit, along with the 82C88 bus controller, provides full bus arbitration and control for multi-processor systems. The 82C89 is typically used in medium to large 80C86 or 80C88 systems
where access to the bus by several processors must be coordinated. The 82C89 also provides high output current and capacitive drive to eliminate the need for additional bus buffering.
Static CMOS circuit design insures low operating power. The advanced Intersil SAJI CMOS process results in performance equal to or greater than existing equivalent products at a significant power savings.
82C89 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+8.0V
Input, Output or I/O Voltage . . . . . . . . . . . GND -0.5V to VCC +0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1
Input, Output or I/O Voltage . . . . . . . . . . . GND -0.5V to VCC +0.5V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1
82C89 Features
• Pin Compatible with Bipolar 8289
• Performance Compatible with:
- 80C86/80C88 . . . . . . . . . . . . . . . . . . . . . . . . . .(5/8MHz)
• Provides Multi-Master System Bus Control and
Arbitration
• Provides Simple Interface with 82C88/8288 Bus
Controller
• Synchronizes 80C86/8086, 80C88/8088 Processors
with Multi-Master Bus
• Bipolar Drive Capability
• Four Operating Modes for Flexible System Configuration
• Low Power Operation
- ICCSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA (Max)
- ICCOP . . . . . . . . . . . . . . . . . . . . . . . . .1mA/MHz (Max)
• Operating Temperature Ranges
- C82C89 . . . . . . . . . . . . . . . . . . . . . . . . . .0oC to +70oC
- I82C89 . . . . . . . . . . . . . . . . . . . . . . . . . -40oC to +85oC
- M82C89 . . . . . . . . . . . . . . . . . . . . . . . -55oC to +125oC
• Performance Compatible with:
- 80C86/80C88 . . . . . . . . . . . . . . . . . . . . . . . . . .(5/8MHz)
• Provides Multi-Master System Bus Control and
Arbitration
• Provides Simple Interface with 82C88/8288 Bus
Controller
• Synchronizes 80C86/8086, 80C88/8088 Processors
with Multi-Master Bus
• Bipolar Drive Capability
• Four Operating Modes for Flexible System Configuration
• Low Power Operation
- ICCSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA (Max)
- ICCOP . . . . . . . . . . . . . . . . . . . . . . . . .1mA/MHz (Max)
• Operating Temperature Ranges
- C82C89 . . . . . . . . . . . . . . . . . . . . . . . . . .0oC to +70oC
- I82C89 . . . . . . . . . . . . . . . . . . . . . . . . . -40oC to +85oC
- M82C89 . . . . . . . . . . . . . . . . . . . . . . . -55oC to +125oC

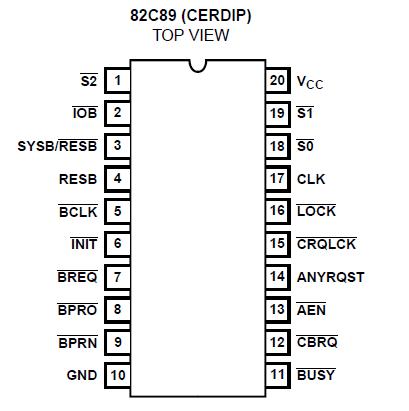

82C89 Connection Diagram
82C89
