A28F400BX-T
-
Suppliers
DataSheet
General Description
A28F400BX-T Maximum Ratings
Operating Temperature
During Read -40 to + 125
During Block Erase
and Word/Byte Write - 40 to + 125
Temperature Under Bias - 40 to + 125
Storage Temperature - 65 to + 150
Voltage on Any Pin
(except VCC, VPP, A9 and RPÝ)
with Respect to GND - 2.0V to a7.0V(2)
Voltage on Pin RPÝ or Pin A9
with Respect to GND - 2.0V to a13.5V(2, 3)
VPP Program Voltage with Respect
to GND during Block Erase
and Word/Byte Write - 2.0V to a14.0V(2, 3)
VCC Supply Voltage
with Respect to GND - 2.0V to a7.0V(2)
Output Short Circuit Current 100 mA(4)
During Read -40 to + 125
During Block Erase
and Word/Byte Write - 40 to + 125
Temperature Under Bias - 40 to + 125
Storage Temperature - 65 to + 150
Voltage on Any Pin
(except VCC, VPP, A9 and RPÝ)
with Respect to GND - 2.0V to a7.0V(2)
Voltage on Pin RPÝ or Pin A9
with Respect to GND - 2.0V to a13.5V(2, 3)
VPP Program Voltage with Respect
to GND during Block Erase
and Word/Byte Write - 2.0V to a14.0V(2, 3)
VCC Supply Voltage
with Respect to GND - 2.0V to a7.0V(2)
Output Short Circuit Current 100 mA(4)
A28F400BX-T Features
x8/x16 Input/Output Architecture
A28F400BX-T, A28F400BX-B
For High Performance and High
Integration 16-bit and 32-bit CPUs
Optimized High Density Blocked
Architecture
One 16 KB Protected Boot Block
Two 8 KB Parameter Blocks
One 96 KB Main Block
Three 128 KB Main Blocks
Top or Bottom Boot Locations
Extended Cycling Capability
1,000 Block Erase Cycles
Automated Word/Byte Write and Block Erase
Command User Interface
Status Register
Erase Suspend Capability
SRAM-Compatible Write Interface
Automatic Power Savings Feature
1 mA Typical ICC Active Current in Static Operation
Very High-Performance Read
90 ns Maximum Access Time
45 ns Maximum Output Enable Time
Low Power Consumption
25 mA Typical Active Read Current
Deep Power-Down/Reset Input
Acts as Reset for Boot Operations
Automotive Temperature Operation
b40§C to a125§C
Write Protection for Boot Block
Hardware Data Protection Feature
Erase/Write Lockout During Power Transitions
Industry Standard Surface Mount Packaging
JEDEC ROM Compatible 44-Lead PSOP
12V Word/Byte Write and Block Erase
VPP e 12V g5% Standard
ETOXTM III Flash Technology
5V Read

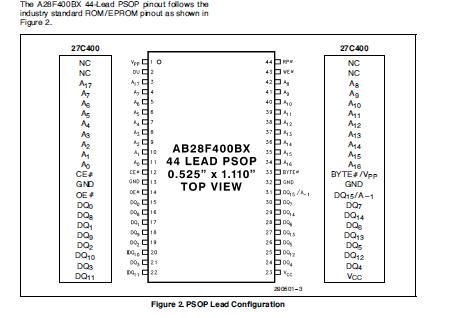

A28F400BX-T Connection Diagram
A28F400BX-T
