Part Number: A43L1616
Description: The A43L1616 is 33,554,432 bits synchronous high data rate Dynamic RAM organized as 2 X 1,048,576 word...
- Table of contents:
A43L1616
-
Suppliers
DataSheet
General Description
A43L1616 General Description
The A43L1616 is 33,554,432 bits synchronous high data rate Dynamic RAM organized as 2 X 1,048,576 words by 16 bits, fabricated with AMIC!s high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable latencies allows the same device to be useful for a variety of high bandwidth, high performance memory system applications.
A43L1616 Maximum Ratings
Voltage on any pin relative to VSS (Vin, Vout ) . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1.0V to + 4.6V
Voltage on VDD supply relative to VSS (VDD, VDDQ)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1.0V to + 4.6V
Storage Temperature (TSTG) . . . . . . . . . . . . -55to +150
Soldering Temperature X Time (TSLODER)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . .0.8W
Short Circuit Current (Ios) . . . . . . . . . . . . . . . . . . . . . 50mA
A43L1616 Features
Power supply
- VDD: 3.3V VDDQ : 3.3V
LVTTL compatible with multiplexed address
Two banks / Pulse RAS
MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
Clock Frequency (max) : 167MHz @ CL=3 (-6)
143MHz @ CL=3 (-7)
All inputs are sampled at the positive going edge of the system clock
DQM for masking
Auto & self refresh
64ms refresh period (4K cycle)
Industrial operating temperature range: -40 to +85 for -U series.
Available in 54-pin TSOP(II) package
Package is available to lead free (-F series)
- VDD: 3.3V VDDQ : 3.3V
LVTTL compatible with multiplexed address
Two banks / Pulse RAS
MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
Clock Frequency (max) : 167MHz @ CL=3 (-6)
143MHz @ CL=3 (-7)
All inputs are sampled at the positive going edge of the system clock
DQM for masking
Auto & self refresh
64ms refresh period (4K cycle)
Industrial operating temperature range: -40 to +85 for -U series.
Available in 54-pin TSOP(II) package
Package is available to lead free (-F series)

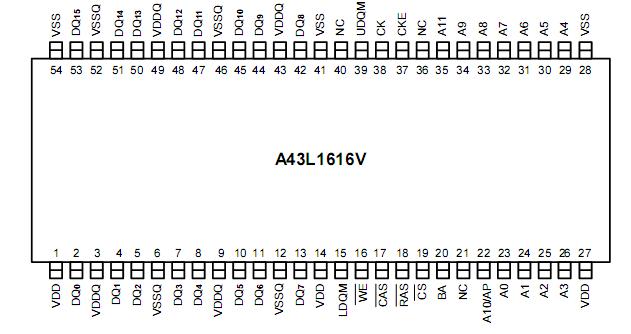

A43L1616 Connection Diagram
A43L1616
