General Description
A61L6316 General Description
The A61L6316 is a high speed 1,048,576-bit static random access memory organized as 65,536 words by 16 bits and operates on low power supply voltage from 3.0V to 3.6V. It is built using AMIC's high performance CMOS process.
Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
The chip enable input is provided for POWER-DOWN, to disable the device. Two byte enable inputs and an output enable input are included for easy interfacing. Data retention is guaranteed at a power supply voltage as low as 2V.
A61L6316 Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . -0.5V to +4.6V
IN, IN/OUT Volt to GND . . . . . . . . . . . . . . . . . . .. -0.5V to VCC + 0.5V
Operating Temperature, Topr . . 0°C to +70°C or -25°C to +85°C
Storage Temperature, Tstg . . . . . . . . . . . . . . . . . -55°C to +125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . . . . . . . . . . . . 260°C, 10 sec
IN, IN/OUT Volt to GND . . . . . . . . . . . . . . . . . . .. -0.5V to VCC + 0.5V
Operating Temperature, Topr . . 0°C to +70°C or -25°C to +85°C
Storage Temperature, Tstg . . . . . . . . . . . . . . . . . -55°C to +125°C
Power Dissipation, PT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7W
Soldering Temp. & Time . . . . . . . . . . . . . . . . . . . . . . . 260°C, 10 sec
A61L6316 Features
·Center power pinout
·Supply voltage: -10: 3.3V+10%, -5% -12, -15: 3.3V±10%
·Access times: 10/12/15 ns (max.)
·Current: Operating: -10: 230mA (max)
-12: 220mA (max.)
-15: 210mA (max.)
Standby: TTL: 25mA (max.)
CMOS: 12mA (max.)
·Extended operating temperature range: -25°C to 85°C for -I series
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL-compatible
·Common I/O using three-state output
·Data retention voltage: 2V (min.)
·Available in 44-pin 400mil SOJ and 44-pin 400mil
TSOP(II) forward packages.
·Supply voltage: -10: 3.3V+10%, -5% -12, -15: 3.3V±10%
·Access times: 10/12/15 ns (max.)
·Current: Operating: -10: 230mA (max)
-12: 220mA (max.)
-15: 210mA (max.)
Standby: TTL: 25mA (max.)
CMOS: 12mA (max.)
·Extended operating temperature range: -25°C to 85°C for -I series
·Full static operation, no clock or refreshing required
·All inputs and outputs are directly TTL-compatible
·Common I/O using three-state output
·Data retention voltage: 2V (min.)
·Available in 44-pin 400mil SOJ and 44-pin 400mil
TSOP(II) forward packages.

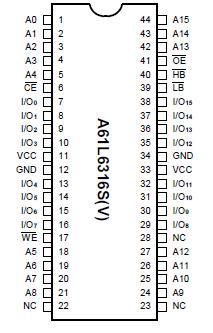

A61L6316 Connection Diagram
A61L6316
PDF/DataSheet Download
- Datasheet: A61L6316
