ACTS161MS

Features: . Devices QML Qualified in Accordance with MIL-PRF-38535. Detailed Electrical and Screening Requirements are Contained inSMD 5962-96716 and Intersils QM Plan. 1.25 Micron Radiation Hardened SOS CMOS. Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD ...

product image

ACTS161MS Picture
See larger image
SeekIC No. : 004268117 Detail

ACTS161MS: Features: . Devices QML Qualified in Accordance with MIL-PRF-38535. Detailed Electrical and Screening Requirements are Contained inSMD 5962-96716 and Intersils QM Plan. 1.25 Micron Radiation Hardene...

ACTS161MS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ACTS161MS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

. Devices QML Qualified in Accordance with MIL-PRF-38535
. Detailed Electrical and Screening Requirements are Contained inSMD 5962-96716 and Intersils QM Plan
. 1.25 Micron Radiation Hardened SOS CMOS
. Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)
. Single Event Upset (SEU) Immunity: <1 x 10-10 Errors/Bit/Day(Typ)
. SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm2/mg
. Dose Rate Upset . . . . . . . . . . . . . . . . >1011 RAD (Si)/s, 20ns Pulse
. Dose Rate Survivability . . . . . . . . . . . >1012 RAD (Si)/s, 20ns Pulse
. Latch-Up Free Under Any Conditions
. Military Temperature Range . . . . . . . . . . . . . . . . . -55oC to +125oC
. Significant Power Reduction Compared to ALSTTL Logic
. DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V
. Input Logic Levels
- VIL = 0.8V Max
- VIH = VCC/2 Min
. Input Current . 1A at VOL, VOH
. Fast Propagation Delay . . . . . . . . . . . . . . . . 25ns (Max), 16ns (Typ)


Pinout

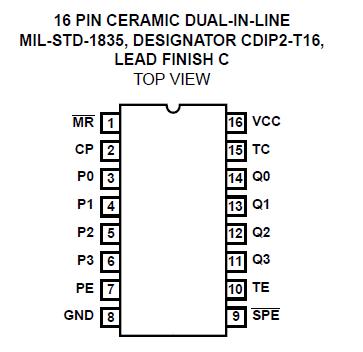

Connection Diagram


Description

The Intersil ACTS161MS is a Radiation Hardened 4-Bit Binary Synchronous Counter, featuring asynchronous reset and load ahead carry logic. The MR is an active low master reset. SPE is an active low Synchronous Parallel Enable which disables counting and allows data at the preset inputs (P0 - P3) to load the counter. CP is the positive edge clock. TC is the terminal count or carry output. Both TE and PE must be high for counting to occur, but are irrelevant to loading. TE low will keep TC low.

The ACTS161MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of a radiation hardened, high-speed, CMOS/SOS Logic family. The ACTS161MS is supplied in a 16 lead Ceramic Flatpack (K suffix) or a Ceramic Dual-In-Line Package (D suffix).
