Part Number: ACTS86MS
Description: The Intersil ACTS86MS is a radiation hardened quad 2-input exclusive OR gate. A high logic level on any one input exclu...
- Table of contents:
ACTS86MS
-
Suppliers
DataSheet
General Description
ACTS86MS General Description
The Intersil ACTS86MS is a radiation hardened quad 2-input exclusive OR gate. A high logic level on any one input exclu-sively will change the output to a high logic state.
The ACTS86MS utilizes advanced CMOS/SOS technology to achieve high-speed operation.This device is a member of the radiation hardened, high-speed, CMOS/SOS Logic Family.
ACTS86MS Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +6.0V
Input Voltage Range. . . . . . . . . . . . . . . . . . .-0.5V to VCC +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . . . . . .±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . . ±50mA
Storage Temperature Range (TSTG). . . . . . . . .-65oC to +150oC
Lead Temperature (Soldering 10s). . . . . . . . . . . . . . . . . +265oC
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . .+175oC
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 1
(All Voltages Reference to VSS)
Thermal Impedance JA JC
DIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74oC/W .24oC/W
Flat Pack . . . . . . . . . . . . . . . . . . . . . . . . .116oC/W 30oC/W
Maximum Package Power Dissipation at +125oC
DIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7W
Flatpack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.4W
Maximum Device Power Dissipation. . . . . . . . . . . . . . . . . .(TBD)W
Gate Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Gates
Input Voltage Range. . . . . . . . . . . . . . . . . . .-0.5V to VCC +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . . . . . . .±10mA
DC Drain Current, Any One Output. . . . . . . . . . . . . . . . . ±50mA
Storage Temperature Range (TSTG). . . . . . . . .-65oC to +150oC
Lead Temperature (Soldering 10s). . . . . . . . . . . . . . . . . +265oC
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . . . .+175oC
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 1
(All Voltages Reference to VSS)
Thermal Impedance JA JC
DIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74oC/W .24oC/W
Flat Pack . . . . . . . . . . . . . . . . . . . . . . . . .116oC/W 30oC/W
Maximum Package Power Dissipation at +125oC
DIP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7W
Flatpack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.4W
Maximum Device Power Dissipation. . . . . . . . . . . . . . . . . .(TBD)W
Gate Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Gates
ACTS86MS Features
•1.25 Micron Radiation Hardened SOS CMOS
•Total Dose 300K RAD (Si)
•Single Event Upset (SEU) Immunity<1 x 10-10 Errors/Bit-Day (Typ)
•SEU LET Threshold >80 MEV-cm2/mg
•Dose Rate Upset >1011 RAD (Si)/s, 20ns Pulse
•Latch-Up Free Under Any Conditions
•Military Temperature Range: -55oC to +125oC
•Significant Power Reduction Compared to ALSTTL Logic
•DC Operating Voltage Range: 4.5V to 5.5V
•Input Logic Levels
-VIL = 0.8V Max
-VIH = VCC/2V Min
•Input Current1µA at VOL, VOH
•Total Dose 300K RAD (Si)
•Single Event Upset (SEU) Immunity<1 x 10-10 Errors/Bit-Day (Typ)
•SEU LET Threshold >80 MEV-cm2/mg
•Dose Rate Upset >1011 RAD (Si)/s, 20ns Pulse
•Latch-Up Free Under Any Conditions
•Military Temperature Range: -55oC to +125oC
•Significant Power Reduction Compared to ALSTTL Logic
•DC Operating Voltage Range: 4.5V to 5.5V
•Input Logic Levels
-VIL = 0.8V Max
-VIH = VCC/2V Min
•Input Current1µA at VOL, VOH

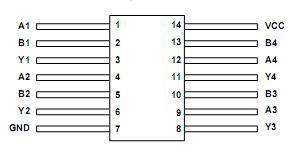

ACTS86MS Connection Diagram
ACTS86MS
PDF/DataSheet Download
- Datasheet: ACTS86MS
- File Size: 89072 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
