General Description
AD1377 General Description
The AD1376/AD1377 are high resolution, 16-bit analog-todigital converters with internal reference, clock and laser-trimmed thin-film applications resistors. They are packaged in a compact 32-pin, ceramic scam sealed (hermetic) dual-in-line packages (DIP). Thin-film scaling resistors provide bipolar input ranges of ±2.5 V, ±5 V, ±10 V and unipolar input ranges of 0 V to +5 V, 0 V to +10 V and 0 V to +20 V.
Digital output data is provided in parallel and serial form with corresponding clock and status outputs. All digital inputs and outputs are TTL compatible.
AD1377 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Logic Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . +7 V
Analog Inputs (Pins 24 and 25) . . . . . . . . . . . . . . . . .±25 V
Analog Ground-to-Digital Ground . . . . . . . . . . . . . . . ±0.3 V
Digital Inputs . . . . . . . . . . . . . . . . . . .0.3 V to VDD + 0.3 V
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . .+175°C
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +15°C
Lead Temperature (10 seconds) . . . . . . . . . . . . . . +300°C
*Absolute maximum ratings are limiting values to be applied individually, and beyond which the service ability of the circuit may be impaired. Functional operability is not necessarily implied. Exposure to absolute maximum rating conditions for an extended period of time may affect device reliability.
AD1377 Features
`Complete 16-Bit Converters with Reference and Clock
`60.003% Maximum Nonlinearity
`No Missing Codes to 14 Bits over Temperature
`Fast Conversion
17 s to 16 Bits (AD1376)
10 s to 16 Bits (AD1377)
`Short Cycle Capability
`Adjustable Clock Rate
`Parallel and Serial Outputs
`Low Power: 645 mW Typical (AD1376)
585 mW Typical (AD1377)
`Industry Standard Pinout
`60.003% Maximum Nonlinearity
`No Missing Codes to 14 Bits over Temperature
`Fast Conversion
17 s to 16 Bits (AD1376)
10 s to 16 Bits (AD1377)
`Short Cycle Capability
`Adjustable Clock Rate
`Parallel and Serial Outputs
`Low Power: 645 mW Typical (AD1376)
585 mW Typical (AD1377)
`Industry Standard Pinout
AD1377 Typical Application
The AD1376/AD1377 are excellent for use in high resolution applications requiring moderate speed and high accuracy or stability over commercial (0°C to +70°C) temperature ranges (for extended temperature ranges, the pin compatible AD1378 is recommended.) Typical applications include medical and analytic instrumentation, precision measurement for industrial robotics, automatic test equipment (ATE), and multichannel data acquisition systems, servo control systems or anywhere wide dynamic range is required A proprietary monolithic DAC and laser-trimmed thin-film resistors guarantee a maximum nonlinearity of ±0 003% (1/2 LSB14.) The converters may be short cycled to achieve faster conversion times 15 ms to 14 bits for the AD1376, or 8 ms to 14 bits for the AD1377.
AD1377
PDF/DataSheet Download
- Datasheet: AD1377
- File Size: 178984 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
- ·AD100
- MICROSEMI [Microsemi Corporation]
- SCRs 1.5 Amp, Planar
- 130670 KB
- ·AD101
- MICROSEMI [Microsemi Corporation]
- SCRs 1.5 Amp, Planar
- 130670 KB
- ·AD102
- AD [Analog Devices]
- General Purpose Input Isolation Amplifier
- 109439 KB
- ·AD10200
- AD [Analog Devices]
- Dual Channel, 12-Bit 105 MSPS IF Sampling A/D Converter with Analog Input Signal Conditioning
- 1743334 KB
- ·AD10200/PCB
- AD [Analog Devices]
- Dual Channel, 12-Bit 105 MSPS IF Sampling A/D Converter with Analog Input Signal Conditioning
- 1743334 KB
- ·AD10200BZ
- AD [Analog Devices]
- Dual Channel, 12-Bit 105 MSPS IF Sampling A/D Converter with Analog Input Signal Conditioning
- 1743334 KB
- ·AD10201
- 935212 KB
- ·AD10226
- AD [Analog Devices]
- Dual-Channel, 12-Bit 125 MSPS IF Sampling A/D Converter
- 1000123 KB
AD1377 Relative Products

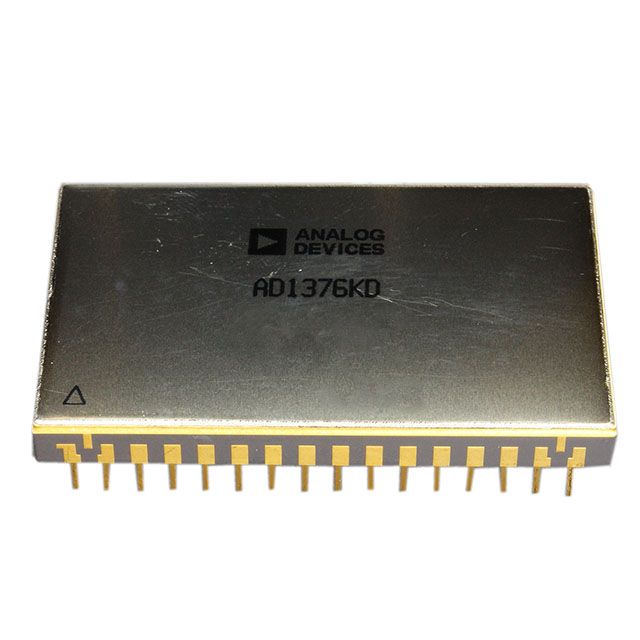

AD1376KD
